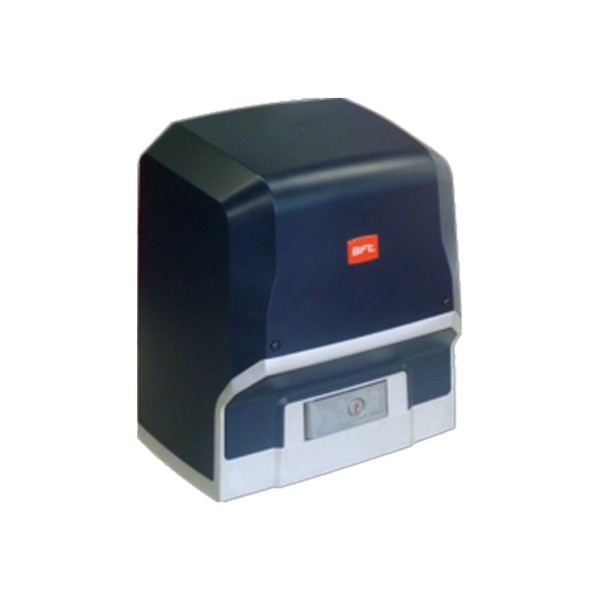

BFT Ares BT A 1500.V Slide Gate Opener - P926188-00002
Details
BFT Ares BT A 1500.V Slide Gate Opener - P926188-00002
The BFT Ares BT A 1500.V is a heavy-duty slide gate opener equipped with a 24V DC motor for medium to heavy-duty gates up to 1,500 kg. It includes programmable control settings for tailored performance, smooth start/stop functionality, and integrated safety mechanisms. Designed for demanding residential and commercial installations, it's compatible with a wide range of BFT accessories for enhanced operation. Its balance of power and precision makes it ideal for frequent-use locations.
Features
- Handles gates up to 1,500 kg
- 24V DC motor for heavy-duty performance
- Programmable settings and smooth motion
- Integrated safety features
- Works with BFT accessory range
Specifications
- Model: Ares BT A 1500.V
- Motor Type: 24V DC
- Maximum Gate Weight: 1,500 kg
- Applications: Medium to heavy-duty sliding gates
BFT Slide Gate Model Comparison Chart:
| Ares Series | Deimos Series | Icaro Series | Rack & Pinion Series | |
| Gate Capacity | 500 kg - 1,650 kg (1,100 - 3,300 lbs) | 400 kg - 1,100 lbs | 1,000 kg - 2,200 kg (2,200 - 4,400 lbs) | Up to 7,000 lbs |
| Motor Voltage | 24V, 120V, 230V | 24V, 120V, 230V | 120V, 230V | 230V (three-phase) |
| Speed | 5.9 - 39 ft/min | 7.9 - 12 m/min | 7.9 - 22 m/min | 34.5 ft/min |
| Duty Cycle | Intensive use | Semi-intensive to intensive use | Very intensive use | Very intensive use |
| Special Features | D-Track torque management, programmable slowdown, mechanical locking | D-Track torque management, obstruction sensing, LCD control board | D-Track torque management, mechanical clutch, oil bath gearbox, U-Link connectivity | Hydrodynamic gear system, electromechanical limit switches, electric brake |
| SKU | P926188-00002 |
|---|---|
| Opening Speed | 7.9" per second |
| Input Voltage | 220/230/240 AC (60 Hz, 1 Phase), 230 AC (50 Hz, 1 Phase) |
| Max Gate Weight | 3300 lbs |
| Max Gate Length | 75 ft |
| Slide Gate Model | Ares |
