BFT Ares BT A 1000 120V Slide Gate Opener - 2611655
Details

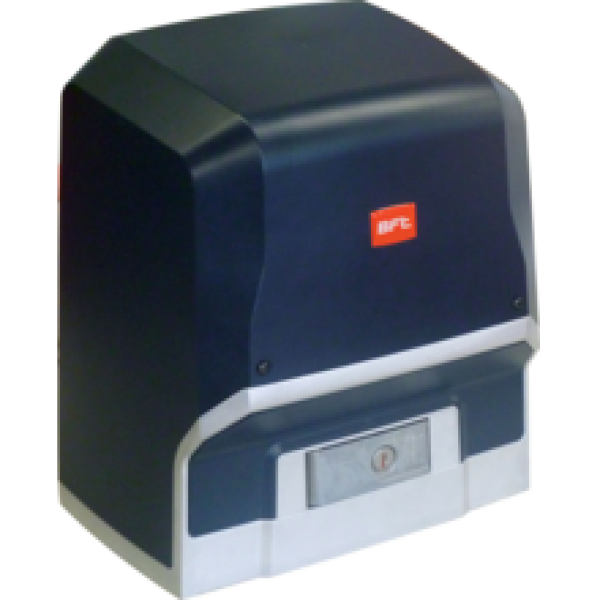

BFT Ares BT A 1000 120V Slide Gate Opener - 2611655
The BFT Ares BT A 1000 sliding gate opener is designed for medium to heavy-duty applications, capable of handling gates up to 2200 pounds. It operates using a 24 volt motor supplied by a 120 volt power source and includes an integrated control panel for simplified setup. The motor delivers consistent torque and speed, with adjustable slowdown settings for smooth operation. Built-in safety features like obstacle detection and encoder feedback help ensure reliable use in high-traffic or residential areas.
Specifications
- Input voltage: 120 volts
- Motor voltage: 24 volts DC
- Maximum gate weight: 2200 pounds
- Maximum leaf length: 75 feet (depending on weight and track)
- Speed: 5.9 inches per second
- Control unit: SHYRA-T ARES UL built-in
- Limit switch: magnetic type
- Operating temperature: minus 4 to plus 131 degrees Fahrenheit
- Duty cycle: intensive use
- Protection rating: IP24
Features
- Handles sliding gates up to 2200 pounds in commercial or residential applications
- Integrated control unit with user-friendly configuration
- Magnetic limit switches for precise open and close positioning
- Built-in encoder and amperometric obstacle detection
- Adjustable soft start and stop for reduced wear
- Compatible with BFT transmitters and access systems
| SKU | 2611655 |
|---|---|
| Opening Speed | 5.9" per second |
| Max Gate Weight | 2200 lbs |
| Max Gate Length | 75 ft |
| Product Type | Opener |
| Slide Gate Model | Ares |
