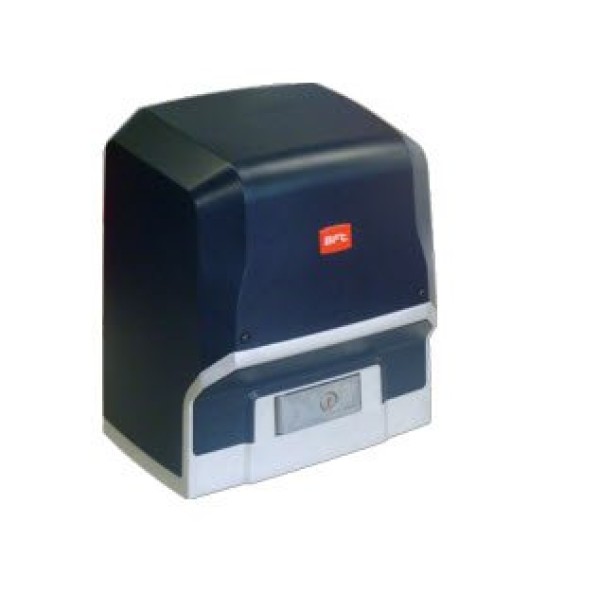

BFT Ares BT A 1000 24V Slide Gate Opener - P926189 00002
Details
BFT Ares BT A 1000 24V Slide Gate Opener - P926189 00002
The BFT Ares BT A 1000 is a high-performance slide gate operator suitable for residential and light commercial gates weighing up to 1,000 kg. Powered by a 24V motor, it offers smooth, controlled gate movement with adjustable opening and closing slowdowns. Built-in safety features include obstacle detection, ensuring the gate halts immediately upon contact. This system is compatible with a variety of BFT accessories, allowing for expanded functionality and customized installations.
Features
- Supports gates up to 1,000 kg
- 24V motor with adjustable speed and slowdown
- Obstacle detection for safety
- Programmable operation settings
- Accessory compatibility for added functionality
Specifications
- Model: Ares BT A 1000
- Voltage: 24V
- Max Gate Weight: 1,000 kg
- Applications: Sliding gates
BFT Slide Gate Model Comparison Chart:
| Ares Series | Deimos Series | Icaro Series | Rack & Pinion Series | |
| Gate Capacity | 500 kg - 1,650 kg (1,100 - 3,300 lbs) | 400 kg - 1,100 lbs | 1,000 kg - 2,200 kg (2,200 - 4,400 lbs) | Up to 7,000 lbs |
| Motor Voltage | 24V, 120V, 230V | 24V, 120V, 230V | 120V, 230V | 230V (three-phase) |
| Speed | 5.9 - 39 ft/min | 7.9 - 12 m/min | 7.9 - 22 m/min | 34.5 ft/min |
| Duty Cycle | Intensive use | Semi-intensive to intensive use | Very intensive use | Very intensive use |
| Special Features | D-Track torque management, programmable slowdown, mechanical locking | D-Track torque management, obstruction sensing, LCD control board | D-Track torque management, mechanical clutch, oil bath gearbox, U-Link connectivity | Hydrodynamic gear system, electromechanical limit switches, electric brake |
| SKU | P926189-00002 |
|---|---|
| Alternate Part Number | 2600856 |
| Opening Speed | 11.8" per second |
| Input Voltage | 24 DC |
| Max Gate Weight | 2200 lbs |
| Max Gate Length | 75 ft |
| Slide Gate Model | Ares |
| Brochure | Download PDF file |
| Catalog | Download PDF file |
| Cut Sheet | Download PDF file |
| Manual | Download PDF file |
