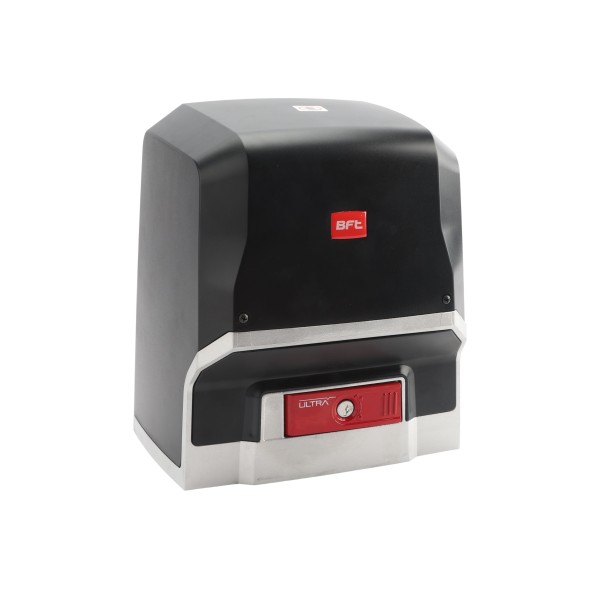

BFT Ares Ultra BT A1500 UL Rack & Pinion Slide Gate Opener - P926191 00005
Details
BFT Ares Ultra BT A1500 UL Rack & Pinion Slide Gate Opener - P926191 00005
The BFT Ares Ultra BT A1500 UL combines power and precision for heavy commercial and industrial sliding gates up to 3,300 pounds. Its 24V motor allows fine torque and speed control, ensuring smooth operation even under intensive use. Equipped with D-Track technology, the system maintains consistent performance across varying conditions. Compatible with multiple rack options, it provides flexibility in installation and reliable day-to-day function.
Features
- Handles gates up to 3,300 pounds
- 24V motor for precise torque and speed control
- D-Track technology for consistent performance
- MERAK control panel included
- Compatible with multiple rack types
Specifications
- Control Panel: MERAK
- Max Leaf Weight: 3,300 lbs
- Power Supply: 120V single-phase
- Power Input: 400 W
- Pinion Module: 4
- Protection Rating: IP44
- Environmental Conditions: -4 Degrees F to 131 Degrees F
Compatible Racks:
- CFZ - 6 1/2 ft galvanized steel rack
- CVZ - 3 1/4 ft galvanized steel rack
- CP - 3 1/4 ft plastic rack
BFT Slide Gate Model Comparison Chart:
| Ares Series | Deimos Series | Icaro Series | Rack & Pinion Series | |
| Gate Capacity | 500 kg - 1,650 kg (1,100 - 3,300 lbs) | 400 kg - 1,100 lbs | 1,000 kg - 2,200 kg (2,200 - 4,400 lbs) | Up to 7,000 lbs |
| Motor Voltage | 24V, 120V, 230V | 24V, 120V, 230V | 120V, 230V | 230V (three-phase) |
| Speed | 5.9 - 39 ft/min | 7.9 - 12 m/min | 7.9 - 22 m/min | 34.5 ft/min |
| Duty Cycle | Intensive use | Semi-intensive to intensive use | Very intensive use | Very intensive use |
| Special Features | D-Track torque management, programmable slowdown, mechanical locking | D-Track torque management, obstruction sensing, LCD control board | D-Track torque management, mechanical clutch, oil bath gearbox, U-Link connectivity | Hydrodynamic gear system, electromechanical limit switches, electric brake |
| SKU | P926191-00005 |
|---|---|
| Alternate Part Number | 2614217 |
| Slide Gate Model | Ares |
| Input Voltage | 110/115/120 AC (60 Hz, 1 Phase) |
| Max Gate Weight | 3300 lbs |
| Max Gate Length | 75 ft |
| Opening Speed | 5.9" per second |
| Brochure | Download PDF file |
| Catalog | Download PDF file |
| Manual | Download PDF file |
