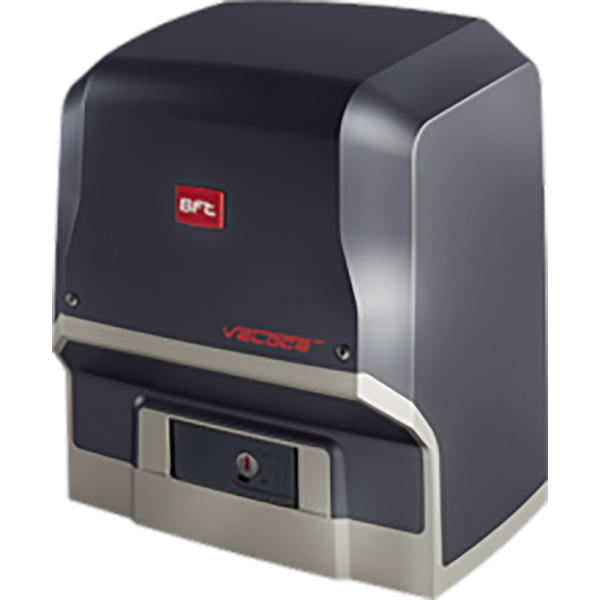

BFT Ares Veloce Smart BT A500 Automatic Sliding Gate Opener (120V, 60Hz) - P926198-00001
Details
BFT Ares Veloce Smart BT A500 Automatic Sliding Gate Opener (120V, 60Hz) - P926198-00001
The BFT Ares Veloce Smart BT A500 120V delivers high-speed gate movement for applications requiring quick access and closure. Powered by a 120V, 60Hz motor, it supports gates up to 500 kg while maintaining smooth, secure operation through obstacle detection. This model is compatible with a range of BFT accessories, allowing for system customization and expansion. Built for medium-duty use, it's a reliable option for residential and light commercial settings.
Features
- Supports gates up to 500 kg
- 120V, 60Hz motor for fast operation
- Obstacle detection for safety
- Accessory compatibility for customization
- Ideal for medium-duty applications
Specifications
- Model: Ares Veloce Smart BT A500
- Voltage: 120V
- Frequency: 60Hz
- Max Gate Weight: 500 kg
BFT Slide Gate Model Comparison Chart:
| Ares Series | Deimos Series | Icaro Series | Rack & Pinion Series | |
| Gate Capacity | 500 kg - 1,650 kg (1,100 - 3,300 lbs) | 400 kg - 1,100 lbs | 1,000 kg - 2,200 kg (2,200 - 4,400 lbs) | Up to 7,000 lbs |
| Motor Voltage | 24V, 120V, 230V | 24V, 120V, 230V | 120V, 230V | 230V (three-phase) |
| Speed | 5.9 - 39 ft/min | 7.9 - 12 m/min | 7.9 - 22 m/min | 34.5 ft/min |
| Duty Cycle | Intensive use | Semi-intensive to intensive use | Very intensive use | Very intensive use |
| Special Features | D-Track torque management, programmable slowdown, mechanical locking | D-Track torque management, obstruction sensing, LCD control board | D-Track torque management, mechanical clutch, oil bath gearbox, U-Link connectivity | Hydrodynamic gear system, electromechanical limit switches, electric brake |
| SKU | P926198-00001 |
|---|---|
| Alternate Part Number | 2604044 |
| Opening Speed | 11.8" per second |
| Input Voltage | 110/115/120 AC (60 Hz, 1 Phase) |
| Max Gate Weight | 1100 lbs |
| Max Gate Length | 75 ft |
| Slide Gate Model | Ares |
| Brochure | Download PDF file |
| Catalog | Download PDF file |
| Specification Sheet | Download PDF file |
