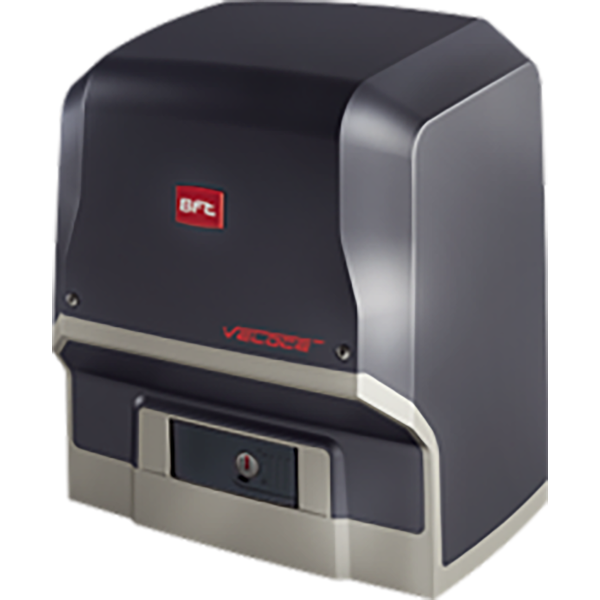

BFT Ares Veloce Smart BT A500 Automatic Sliding Gate Opener (230V) - P926198-00002
Details
BFT Ares Veloce Smart BT A500 Automatic Sliding Gate Opener (230V) - P926198-00002
The BFT Ares Veloce Smart BT A500 230V is built for speed and reliability, moving gates up to 500 kg with rapid operation. Its advanced safety mechanisms, including obstacle detection, ensure safe and dependable performance. Programmable settings allow for tailored operation, and the system is compatible with BFT accessories for enhanced control and convenience. This operator is a great choice for properties needing quick gate access without sacrificing safety.
Features
- Handles gates up to 500 kg
- 230V motor for fast performance
- Obstacle detection safety system
- Programmable operation settings
- Accessory compatibility
Specifications
- Model: Ares Veloce Smart BT A500
- Voltage: 230V
- Max Gate Weight: 500 kg
BFT Slide Gate Model Comparison Chart:
| Ares Series | Deimos Series | Icaro Series | Rack & Pinion Series | |
| Gate Capacity | 500 kg - 1,650 kg (1,100 - 3,300 lbs) | 400 kg - 1,100 lbs | 1,000 kg - 2,200 kg (2,200 - 4,400 lbs) | Up to 7,000 lbs |
| Motor Voltage | 24V, 120V, 230V | 24V, 120V, 230V | 120V, 230V | 230V (three-phase) |
| Speed | 5.9 - 39 ft/min | 7.9 - 12 m/min | 7.9 - 22 m/min | 34.5 ft/min |
| Duty Cycle | Intensive use | Semi-intensive to intensive use | Very intensive use | Very intensive use |
| Special Features | D-Track torque management, programmable slowdown, mechanical locking | D-Track torque management, obstruction sensing, LCD control board | D-Track torque management, mechanical clutch, oil bath gearbox, U-Link connectivity | Hydrodynamic gear system, electromechanical limit switches, electric brake |
| SKU | P926198-00002 |
|---|---|
| Alternate Part Number | 2601414 |
| Opening Speed | 11.8" per second |
| Input Voltage | 220/230/240 AC (60 Hz, 1 Phase), 230 AC (50 Hz, 1 Phase) |
| Max Gate Weight | 2200 lbs |
| Max Gate Length | 75 ft |
| Slide Gate Model | Ares |
| Brochure | Download PDF file |
| Catalog | Download PDF file |
| Specification Sheet | Download PDF file |
