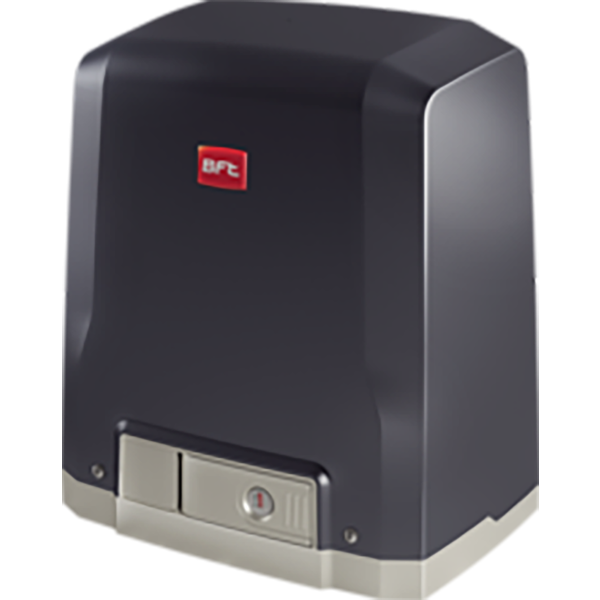

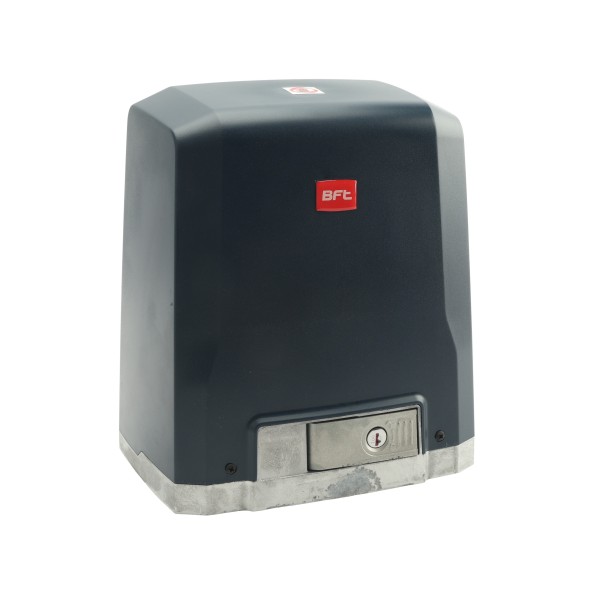

BFT Deimos AC A800 V SL DN Automatic Sliding Gate Opener (120V) - P925253-00004
Details
BFT Deimos AC A800 V SL DN Automatic Sliding Gate Opener (120V) - P925253-00004
The BFT Deimos AC A800 V SL DN combines intelligent control systems with adaptive safety features for dependable sliding gate automation. Its remote cloning function simplifies programming, while torque management adjusts operation for smooth movement under varying conditions. Built with microprocessor technology, it maintains optimal performance in any climate and with different levels of mechanical wear. This unit is ideal for installations where consistent performance and ease of setup are priorities.
Features
- Programmable MITTO remote cloning
- Adaptive torque control
- Microprocessor-based operation
- Reliable performance across climates
- Unit-only configuration
Specifications
- Model: Deimos AC A800 V SL DN
- Power Supply: 120V
- Operation: Microprocessor-controlled
- Application: Residential and light commercial sliding gates
BFT Slide Gate Model Comparison Chart:
| Ares Series | Deimos Series | Icaro Series | Rack & Pinion Series | |
| Gate Capacity | 500 kg - 1,650 kg (1,100 - 3,300 lbs) | 400 kg - 1,100 lbs | 1,000 kg - 2,200 kg (2,200 - 4,400 lbs) | Up to 7,000 lbs |
| Motor Voltage | 24V, 120V, 230V | 24V, 120V, 230V | 120V, 230V | 230V (three-phase) |
| Speed | 5.9 - 39 ft/min | 7.9 - 12 m/min | 7.9 - 22 m/min | 34.5 ft/min |
| Duty Cycle | Intensive use | Semi-intensive to intensive use | Very intensive use | Very intensive use |
| Special Features | D-Track torque management, programmable slowdown, mechanical locking | D-Track torque management, obstruction sensing, LCD control board | D-Track torque management, mechanical clutch, oil bath gearbox, U-Link connectivity | Hydrodynamic gear system, electromechanical limit switches, electric brake |
| SKU | P925253-00004 |
|---|---|
| Alternate Part Number | 2613177 |
| Input Voltage | 110/115/120 AC (60 Hz, 1 Phase) |
| Max Gate Weight | 880 lbs |
| Specification Sheet | Download PDF file |
