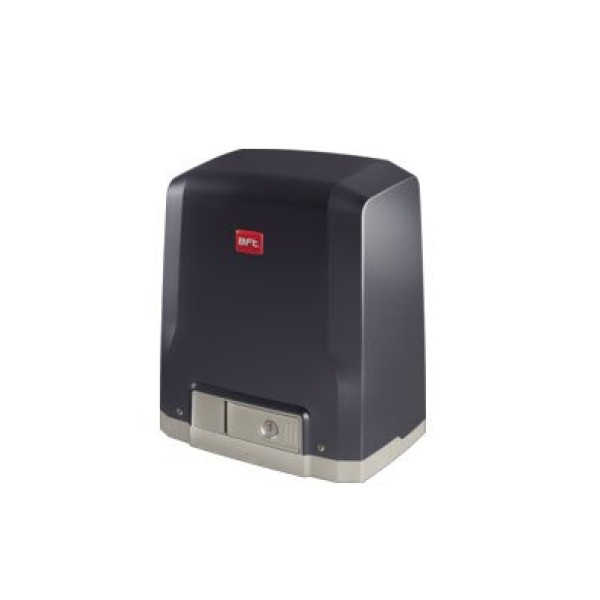

BFT Deimos BT A600 Slide Gate Opener 120V - P925224 00001

The Deimos BT A600 offers smooth, safe gate operation for gates up to 600 kg. It features integrated safety systems and compatibility with BFT accessories.
Part Number: P925224-00001
$853.03 each
$853.03 each
OR


Details

BFT Deimos BT A600 Slide Gate Opener 120V - P925224 00001

The BFT Deimos BT A600 Slide Gate Opener combines strength and smooth performance, managing gates up to 600 kg. Its integrated safety mechanisms help prevent accidents while ensuring consistent movement. Compatible with a wide range of BFT accessories, this model can be customized to meet specific installation needs. Ideal for medium-duty applications, it offers dependable performance and efficient operation.

Features

  • Supports gates up to 600 kg
  • Integrated safety features
  • Customizable with BFT accessories
  • Reliable medium-duty performance

Specifications

  • Model: Deimos BT A600
  • Power Supply: 120V
  • Max Gate Weight: 600 kg

BFT Slide Gate Model Comparison Chart:

  Ares Series Deimos Series Icaro Series Rack & Pinion Series
Gate Capacity 500 kg - 1,650 kg (1,100 - 3,300 lbs) 400 kg - 1,100 lbs 1,000 kg - 2,200 kg (2,200 - 4,400 lbs) Up to 7,000 lbs
Motor Voltage 24V, 120V, 230V 24V, 120V, 230V 120V, 230V 230V (three-phase)
Speed 5.9 - 39 ft/min 7.9 - 12 m/min 7.9 - 22 m/min 34.5 ft/min
Duty Cycle Intensive use Semi-intensive to intensive use Very intensive use Very intensive use
Special Features D-Track torque management, programmable slowdown, mechanical locking D-Track torque management, obstruction sensing, LCD control board D-Track torque management, mechanical clutch, oil bath gearbox, U-Link connectivity Hydrodynamic gear system, electromechanical limit switches, electric brake
Prefer to Call? (888) 378-1028

Questions about part number P925224-00001?

Required Fields *

Name *

Email *

Phone

My Questions *

SKU P925224-00001
Alternate Part Number 2611588
Opening Speed 7.9" per second
Input Voltage 110/115/120 AC (60 Hz, 1 Phase)
Max Gate Weight 1100 lbs
Max Gate Length 75 ft
Slide Gate Model Deimos
Brochure Download PDF file
Catalog Download PDF file
Cut Sheet Download PDF file
Manual Download PDF file
Quick Start Guide Download PDF file
