BFT Deimos BT Rack and Pinion Slide Gate Opener Kit (MITTO 2 + Reflective Beam) - KR925228 00003
Details
BFT Deimos BT Rack and Pinion Slide Gate Opener Kit (MITTO 2 + Reflective Beam) - KR925228 00003

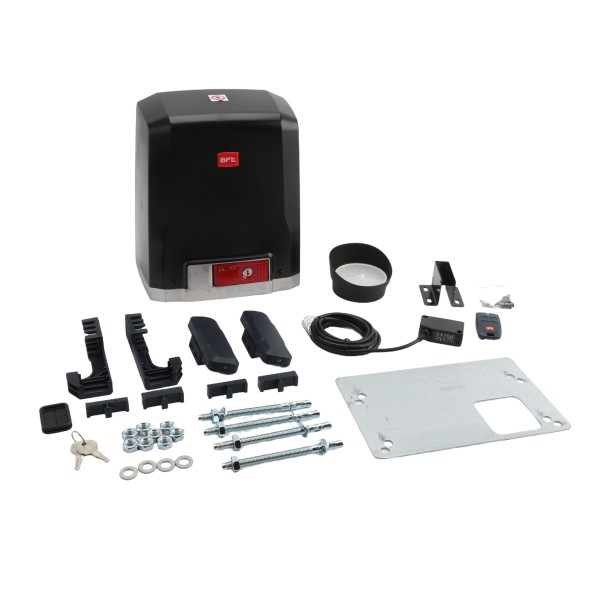

The BFT Deimos BT Rack and Pinion Slide Gate Opener Kit is built around a 24V Deimos BT operator that moves gates up to 1,100 pounds and 75 feet with steady, predictable motion. A two-channel rolling-code receiver and included MITTO transmitter make setup quick, while obstruction sensing and self-learning diagnostics keep the system responsive. Electromechanical limit switches and an integrated control board simplify wiring and adjustments from the front-mounted LCD interface. The kit also includes a polarized reflective beam for added entrapment protection and supports optional battery or solar power so the gate keeps moving when utility power is out.
Features
- Complete kit: Deimos BT operator, MITTO rolling-code transmitter, polarized reflective beam
- Integrated control board with LCD interface and self-learning/self-diagnostic functions
- Obstruction sensing that reverses travel upon contact
- Electromechanical limit switches for consistent end-of-travel control
- Compatible with EELink programming protocol
- Optional battery backup and solar power support
Specifications
- Control Panel: QSC D UL (included)
- Operator Type: Irreversible
- Power Supply: 24V
- Power Input: 0.1 hp (70 W)
- Leaf Speed: 7.9 inches per second (12 m per min)
- Output Rotational Speed: 79 rpm
- Pinion Pitch: 4 mm (14 teeth)
- Impact Reaction: Electronic torque limiter
- Limit Switches: Electromechanical
- Manual Release: Mechanical release with knob
- Duty: Intensive use
- Environmental Conditions: 5 degrees Fahrenheit (minus 15 degrees Celsius) to 140 degrees Fahrenheit (plus 60 degrees Celsius)
- Protection Rating: IP24
- Operator Weight: 16 lbs
- Fuses: 0.63A T (transformer), 2A T (logic unit)
Compatible Parts
- CFZ - 6.5 ft galvanized steel rack
- CVZ - 3.25 ft galvanized steel rack
- CP - 3.25 ft plastic rack
- Battery Back-Up Unit - fits inside operator housing
- ECOSOL Solar Kit - solar power add-on
- ECOSOL Double Battery Expansion - increases battery capacity
- Additional ECOSOL Solar Panel - increases charge rate
Note: Transmitters included may be two or four button.
BFT Slide Gate Model Comparison Chart:
Ares Series | Deimos Series | Icaro Series | Rack & Pinion Series | |
Gate Capacity | 500 kg - 1,650 kg (1,100 - 3,300 lbs) | 400 kg - 1,100 lbs | 1,000 kg - 2,200 kg (2,200 - 4,400 lbs) | Up to 7,000 lbs |
Motor Voltage | 24V, 120V, 230V | 24V, 120V, 230V | 120V, 230V | 230V (three-phase) |
Speed | 5.9 - 39 ft/min | 7.9 - 12 m/min | 7.9 - 22 m/min | 34.5 ft/min |
Duty Cycle | Intensive use | Semi-intensive to intensive use | Very intensive use | Very intensive use |
Special Features | D-Track torque management, programmable slowdown, mechanical locking | D-Track torque management, obstruction sensing, LCD control board | D-Track torque management, mechanical clutch, oil bath gearbox, U-Link connectivity | Hydrodynamic gear system, electromechanical limit switches, electric brake |
SKU | KR925228-00003 |
---|---|
Alternate Part Number | 2614817 |
Slide Gate Model | Deimos |
Input Voltage | 110/115/120 AC (60 Hz, 1 Phase) |
Kit Includes | Control Unit, Photocell(s), Receiver, Transmitter(s) |
Max Gate Weight | 1100 lbs |
Max Gate Length | 75 ft |
Opening Speed | 7.9" per second |
