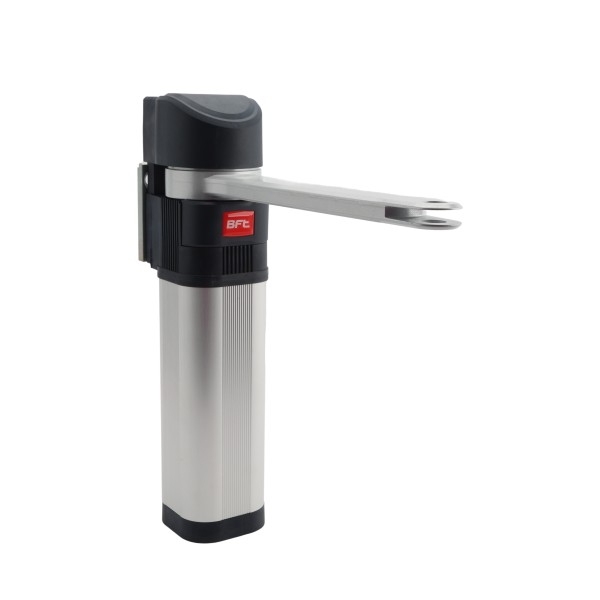

BFT E5 BT A18 Low Voltage Electromechanical Swing Gate Opener - P930027 00001

BFT E5 BT A18 Low Voltage Electromechanical Swing Gate Opener - P930027 00001

Name: BFT E5 BT A18 Low Voltage Electromechanical Swing Gate Opener - P930027 00001
Brand: DF Supply, Inc.
SKU: P930027-00001
Price: 399.85 USD
Availability: InStock

The E5 BT A18 Low Voltage Vehicular Electromechanical Reversible Swing Gate Opener by BFT can be installed to pillars or columns using the Thalia Control Unit. This swing gate operator is ideal for pedestrian gates up to 5 ft wide and up to 220 lbs. It features U-Link Platform compatibility, D-Track path tracking with smart torque management, and an absolute encoder that recognizes position and manages slow down times. Ideal for multi-residential and commercial sites, this Low Voltage Electromechanical Swing Gate Operator includes automatic closing settings and remote opening for added security.

Part Number: P930027-00001

$399.85 each
$399.85 each

Details

BFT E5 BT A18 Low Voltage Electromechanical Swing Gate Opener - P930027 00001

The E5 BT A18 Low Voltage Vehicular Electromechanical Reversible Swing Gate Opener by BFT can be installed to pillars or columns using the Thalia Control Unit. This operator is ideal for pedestrian gates up to 5 ft wide and up to 220 lbs. It features U-Link Technology compatibility that offers two levels of encryption, including the data encryption system and password of the protocol, as well as the underlying communication system, ensuring safe and secure accessibility controls. The D-Track impact reaction and path tracking includes smart torque management, constantly updating the gate torque level increases accuracy,improves slow downs, and adds safety in maneuvers in any weather condition. The Low Voltage Electromechanical Reversible Swing Gate Opener's absolute enncoder recognizes the position to manage slow down at all times that increase overall efficiency of the swing gate. Additional safety features include the ability to manually open the gate at any time using the Push & Go function, settings to automatically close gate after opening for safety in residential settings, and remote opening for ease of use.

Please note that BFT E5 BT A18 Low Voltage Electromechanical Swing Gate Opener does not come with BFT LBA Lever for Articulated Arm - N734921 or BFT LS18 Long Slide Lever - N735058.

Features:

• Installs To Pillars Or Columns
• For Pedestrian Gates Up To 220 lbs
• For Pedestrian Gates Up To 5 ft Wide
• Ideal For Multi-Resident And Commercial Sites
• Push & Go Function To Manually Open Gate Completely
• Easy To Install Fixing Bracket For Columns And Pillars
• Compact, Reversible Electromechanical Swing Gate Opener
• U-Link Connectivity Platform Compatible Using THALIA Control Unit
• Absolute Encoder Recognizes Position To Manage Slow Down At All Times
• THALIA Unit Has Standard Color Terminal Blocks For Output/Input For Quick Assembly
• D-Track Path Tracking Includes Smart Torque Management, Constant Updating For Accuracy
• Safety Enhancements Include Ability To Set Gate Automatic Closing After Opening And Remote Opening
• 4.5-6.5s Opening Speed (90° Manoeuver Including Slowdown) Based On Weight/Dimensions Of The Leaf

Specifications:

• Control Unit: THALIA
• Board Power Supply: 230V
• Motor Voltage: 24V
• Power Consumption: 40W
• Max Width Of Door/Gate Wing: 1.8m (5 ft)
• Cycle Time: 14s
• Limit Switch: Absolute Encoder
• Release Type: Reversible
• Impact Reaction: D-Track
• Frequency Of Use: Semi-Intensive
• Degree Of Protection: IP44
• Interconnectivity: YES
• Max Weight Of Door/Gate Wing: 100kg (220 lbs)
• Average Opening Time: 4.5-6.5s
• Model: E5 BT A18
