BFT Giuno BT A20 UL Automatic Swing Gate Opener Kit with Battery Backup - KGIUNOULA20S-LE
Details
BFT Giuno BT A20 UL Automatic Swing Gate Opener Kit with Battery Backup - KGIUNOULA20S-LE
The GIUNO BT A20 UL Single Hydraulic Swing Gate Opener Kit with Battery Backups is an all-inclusive package designed to open and close a swing gate weighing up to 550 lbs. and up to 10 ft long. The low-voltage hydraulic pistons incorporated into the actuators make it a great choice for residential and commercial applications. The included photo eyes and D-Track System guarantee safety, and the magnetic limits (no more encoder) ensure high precision and simple adjusting to change opening and closing positions.

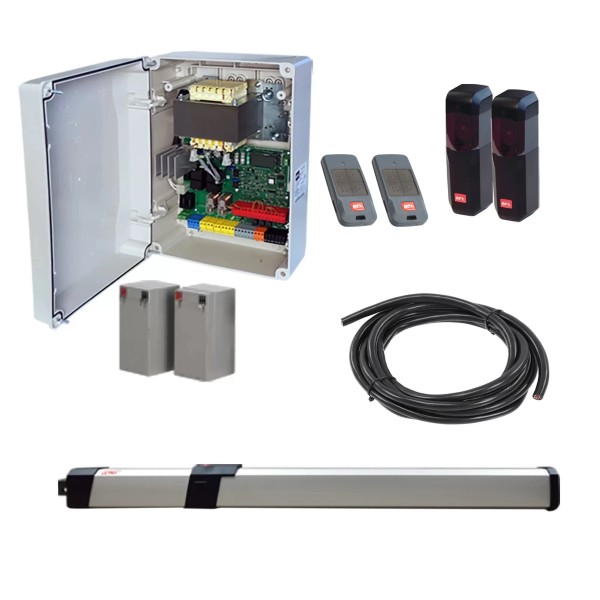

Kit Includes:
- (1) GIUNO BT A20 UL Swing Gate Openers
- (1) 12" x 14" Fiberglass Enclosure
- (1) Thalia UL Control Board
- (2) 9Ah Backup Batteries With 115V Accessory Outlet
- (2) Mitto Two-Button Transmitters
- (1) COMPACTA Photo Eye Set
- 10 ft. 16/4 Installation Wire
Features:
- Single Swing Gate Operation
- Control Panel: Thalia (Included)
- Reversible/Irreversible Function
- UL-Listed Safety Rating
- Hydraulic Locking
- Magnetic Limit Switch with Slowdown
Specifications:
- Max Gate Length: 10 ft.
- Max Gate Weight: 550 lbs.
- Open/Close Time: 14 Seconds
- 100 Degree Opening Angle
- 24V Power Supply
- 90W Power Input
- IP 55 Protection Rating
BFT Giuno UL A50 versus A20 Swing Gate Opener Comparison
| SKU | KGIUNOULA20S-LE |
|---|---|
| Alternate Part Number | 2614814 |
| Actuator Voltage | 24 DC |
| Input Voltage | 220/230/240 AC (60 Hz, 1 Phase), 230 AC (50 Hz, 1 Phase) |
| Swing Gate Model | Giuno A20 |
| Operator Type | Single |
| Kit Includes | Battery Backup, Control Board, Photocell, Transmitter |
| Max Gate Length | 10 ft |
| Max Gate Weight | 550 lbs |
| Opening or Closing Time | 14 seconds |
