BFT Giuno BT A20 UL Dual Automatic Swing Gate Opener Kit - KGIUNOULA20D-SE
Details
BFT Giuno BT A20 UL Dual Automatic Swing Gate Opener Kit - KGIUNOULA20D-SE
The GIUNO BT A20 UL Dual Hydraulic Swing Gate Opener Kit is an all-inclusive package designed to open and close swing gates weighing up to 550 lbs. and up to 10 ft long (per opener.) The low-voltage hydraulic pistons incorporated into the actuators make it a great choice for residential and commercial applications. The included photo eyes and D-Track System guarantee safety, and the magnetic limits (no more encoder) ensure high precision and simple adjusting to change opening and closing positions.

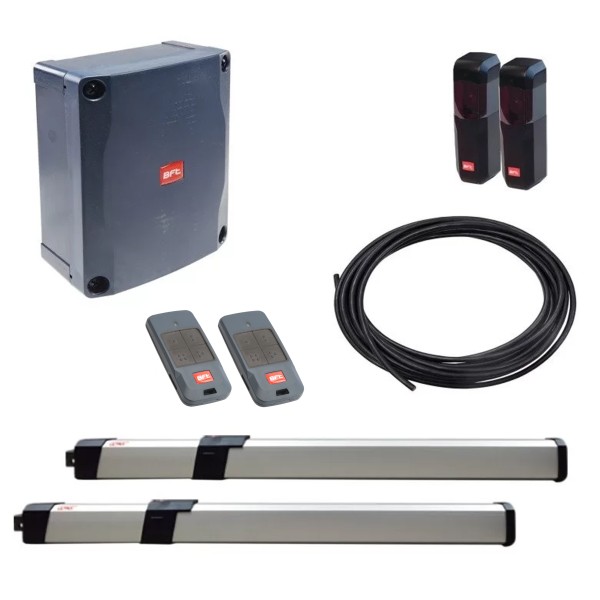

Dual Kit Includes:
- (2) GIUNO BT A20 UL Swing Gate Openers
- (1) 10" x 12" Fiberglass Enclosure
- (1) Thalia UL Control Board
- (2) Mitto Four-Button Transmitters
- (1) COMPACTA Photo Eye Set
- 35 ft. 16/4 Installation Wire
Features:
- Dual Swing Gate Operation
- Control Panel: Thalia (Included)
- Reversible/Irreversible Function
- UL-Listed Safety Rating
- Hydraulic Locking
- Magnetic Limit Switch with Slowdown
Specifications:
- Max Gate Length/Opener: 10 ft.
- Max Gate Weight/Opener: 550 lbs.
- Open/Close Time: 14 Seconds
- 100 Degree Opening Angle
- 24V Power Supply
- 90W Power Input
- IP 55 Protection Rating
BFT Giuno UL A50 versus A20 Swing Gate Opener Comparison
| SKU | KGIUNOULA20D-SE |
|---|---|
| Alternate Part Number | KGIUNOULA20D-SE , 2614813 |
| Manual | Download PDF file |
| Specification Sheet | Download PDF file |
| Actuator Voltage | 24 DC |
Input Voltage
Need to know the difference between voltages? Check out our guide!
Learn More
|
220/230/240 AC (60 Hz, 1 Phase), 230 AC (50 Hz, 1 Phase) |
| Swing Gate Model | Giuno |
| Operator Type | Dual |
| Kit Includes | Actuator Arm(s), Control Unit, Photocell(s), Transmitter(s) |
| Max Gate Length | 6 ft |
| Max Gate Weight | 660 lbs |
| Opening or Closing Time | 14 seconds |
|
Warranty
Browse Our Warranty Info for More Details
Read Now
|
24 Months |
