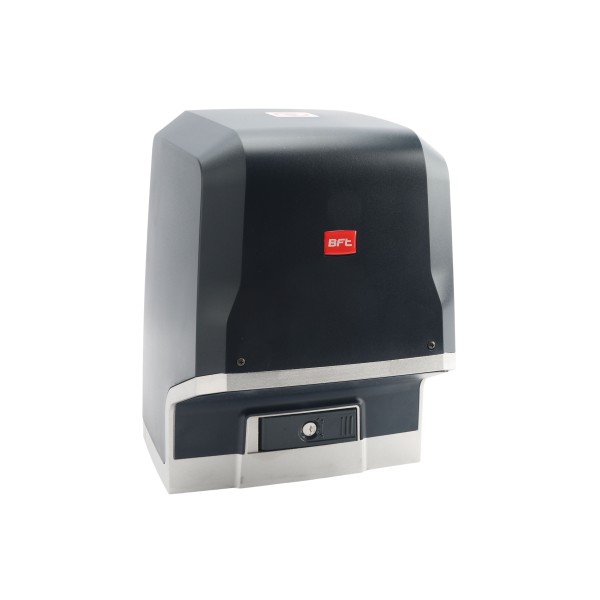

BFT Icaro Smart AC A2000 230V Slide Gate Opener (up to 2000 kg)- P925236 00002
Details
BFT Icaro Smart AC A2000 230V Slide Gate Opener (up to 2000 kg)- P925236 00002
The BFT Icaro Smart AC A2000 230V Slide Gate Opener offers high-capacity performance for gates up to 2,000 kg. Equipped with D-Track technology, it continuously adjusts torque for safe and efficient operation in varying conditions. A mechanical safety clutch and oil bath gearbox enhance reliability and durability. The integrated LEO B CBB L02 control unit streamlines installation and ensures smooth system control, while the lever-operated manual release with a personal key allows for secure manual operation when needed.
Features
- Handles gates up to 2,000 kg
- D-Track adaptive torque management
- Mechanical safety clutch
- Oil bath gearbox for extended service life
- Integrated LEO B CBB L02 control unit
- Manual release with personal key
Specifications
- Model: Icaro Smart AC A2000
- Power Supply: 230V
- Gate Panel Speed: 9 m/min
- Limit Switch Type: Electromechanical
- Maximum Gate Weight: 2,000 kg
BFT Slide Gate Model Comparison Chart:
| Ares Series | Deimos Series | Icaro Series | Rack & Pinion Series | |
| Gate Capacity | 500 kg - 1,650 kg (1,100 - 3,300 lbs) | 400 kg - 1,100 lbs | 1,000 kg - 2,200 kg (2,200 - 4,400 lbs) | Up to 7,000 lbs |
| Motor Voltage | 24V, 120V, 230V | 24V, 120V, 230V | 120V, 230V | 230V (three-phase) |
| Speed | 5.9 - 39 ft/min | 7.9 - 12 m/min | 7.9 - 22 m/min | 34.5 ft/min |
| Duty Cycle | Intensive use | Semi-intensive to intensive use | Very intensive use | Very intensive use |
| Special Features | D-Track torque management, programmable slowdown, mechanical locking | D-Track torque management, obstruction sensing, LCD control board | D-Track torque management, mechanical clutch, oil bath gearbox, U-Link connectivity | Hydrodynamic gear system, electromechanical limit switches, electric brake |
| SKU | P925236-00002 |
|---|---|
| Opening Speed | 5.9" per second |
Input Voltage
Need to know the difference between voltages? Check out our guide!
Learn More
|
220/230/240 AC (60 Hz, 1 Phase), 230 AC (50 Hz, 1 Phase) |
| Max Gate Weight | 2200 lbs |
| Max Gate Length | 75 ft |
| Slide Gate Model | ICARO |
| Specification Sheet | Download PDF file |
| Manual | Download PDF file |
|
Warranty
Browse Our Warranty Info for More Details
Read Now
|
24 Months |
