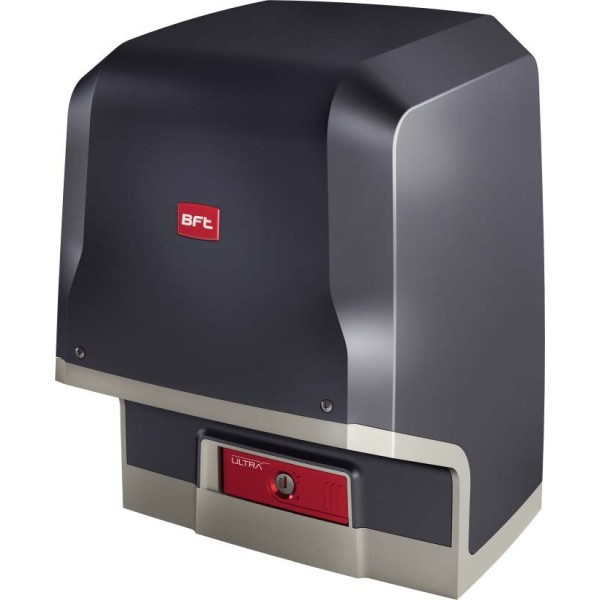

BFT Icaro Ultra AC A2000 Slide Gate Opener, 120V P925238 00001
Details
BFT Icaro Ultra AC A2000 Slide Gate Opener, 120V P925238 00001
The BFT Icaro Ultra AC A2000 120V offers high-capacity gate movement for gates up to 4,400 pounds. Operating at 5.9 inches per second, it combines strong performance with advanced safety features like encoder-based obstacle detection. The integrated control panel supports U-Link connectivity and includes a two-channel rolling code receiver for secure remote operation. Designed for very intensive use, it's a top choice for demanding environments.
Features
- Handles gates up to 4,400 pounds
- Encoder-based obstacle detection
- Two-channel rolling code radio receiver
- U-Link integration
- Built for very intensive use
Specifications
- Control Panel: LEO-MA UL
- Power Supply: 120V
- Power Input: 750 W
- Pinion Pitch: 4 mm
- Leaf Speed: 5.9 inches/second
- Protection Rating: IP24
- Operating Temperature: 5 Degrees F to 140 Degrees F
BFT Slide Gate Model Comparison Chart:
| Ares Series | Deimos Series | Icaro Series | Rack & Pinion Series | |
| Gate Capacity | 500 kg - 1,650 kg (1,100 - 3,300 lbs) | 400 kg - 1,100 lbs | 1,000 kg - 2,200 kg (2,200 - 4,400 lbs) | Up to 7,000 lbs |
| Motor Voltage | 24V, 120V, 230V | 24V, 120V, 230V | 120V, 230V | 230V (three-phase) |
| Speed | 5.9 - 39 ft/min | 7.9 - 12 m/min | 7.9 - 22 m/min | 34.5 ft/min |
| Duty Cycle | Intensive use | Semi-intensive to intensive use | Very intensive use | Very intensive use |
| Special Features | D-Track torque management, programmable slowdown, mechanical locking | D-Track torque management, obstruction sensing, LCD control board | D-Track torque management, mechanical clutch, oil bath gearbox, U-Link connectivity | Hydrodynamic gear system, electromechanical limit switches, electric brake |
| SKU | P925238-00001 |
|---|---|
| Alternate Part Number | P925238 00001 , 2611621 |
| Opening Speed | 5.9" per second |
| Brochure | Download PDF file |
| Specification Sheet | Download PDF file |
| Manual | Download PDF file |
