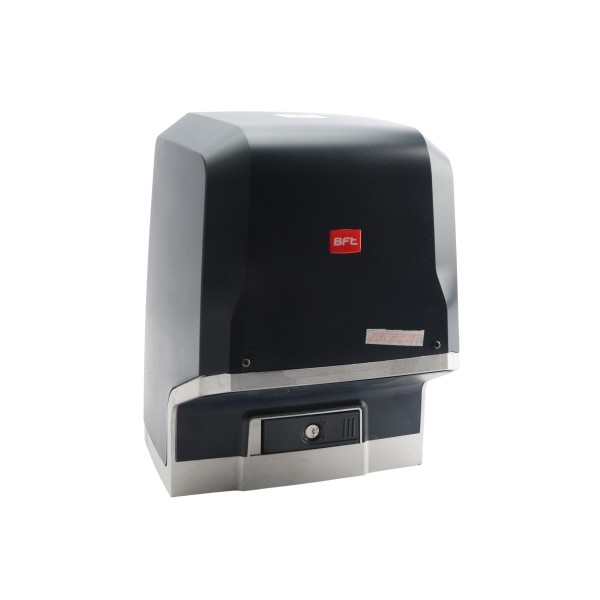

BFT Icaro Veloce Smart AC A 1000 Automatic Sliding Gate Opener (120V, 50Hz) - P925256-00001
Details
BFT Icaro Veloce Smart AC A 1000 Automatic Sliding Gate Opener (120V, 50Hz) - P925256-00001
The BFT Icaro Veloce Smart AC A1000 120V is a rapid-performance sliding gate opener ideal for commercial and industrial environments. Capable of moving gates up to 1,000 kg at speeds of 22 m/min, it combines D-Track torque management with a mechanical safety clutch for secure operation. An oil bath gearbox ensures long-lasting, smooth performance, and the integrated control unit supports U-Link communication for advanced system integration. This makes it an ideal solution for high-traffic areas requiring fast, reliable access.
Features
- Handles gates up to 1,000 kg
- High-speed operation at 22 m/min
- D-Track torque management
- Mechanical safety clutch
- Oil bath gearbox
- U-Link communication compatibility
Specifications
- Model: Icaro Veloce Smart AC A1000
- Power Supply: 120V, 50Hz
- Gate Panel Speed: 22 m/min
- Movement Control: Encoder
- Maximum Gate Weight: 1,000 kg
BFT Slide Gate Model Comparison Chart:
| Ares Series | Deimos Series | Icaro Series | Rack & Pinion Series | |
| Gate Capacity | 500 kg - 1,650 kg (1,100 - 3,300 lbs) | 400 kg - 1,100 lbs | 1,000 kg - 2,200 kg (2,200 - 4,400 lbs) | Up to 7,000 lbs |
| Motor Voltage | 24V, 120V, 230V | 24V, 120V, 230V | 120V, 230V | 230V (three-phase) |
| Speed | 5.9 - 39 ft/min | 7.9 - 12 m/min | 7.9 - 22 m/min | 34.5 ft/min |
| Duty Cycle | Intensive use | Semi-intensive to intensive use | Very intensive use | Very intensive use |
| Special Features | D-Track torque management, programmable slowdown, mechanical locking | D-Track torque management, obstruction sensing, LCD control board | D-Track torque management, mechanical clutch, oil bath gearbox, U-Link connectivity | Hydrodynamic gear system, electromechanical limit switches, electric brake |
| SKU | P925256-00001 |
|---|---|
| Alternate Part Number | 2613178 |
| Opening Speed | 11.8" per second |
| Input Voltage | 110/115/120 AC (60 Hz, 1 Phase) |
| Max Gate Weight | 2200 lbs |
| Max Gate Length | 75 ft |
| Slide Gate Model | ICARO |
| Specification Sheet | Download PDF file |
| Manual | Download PDF file |
