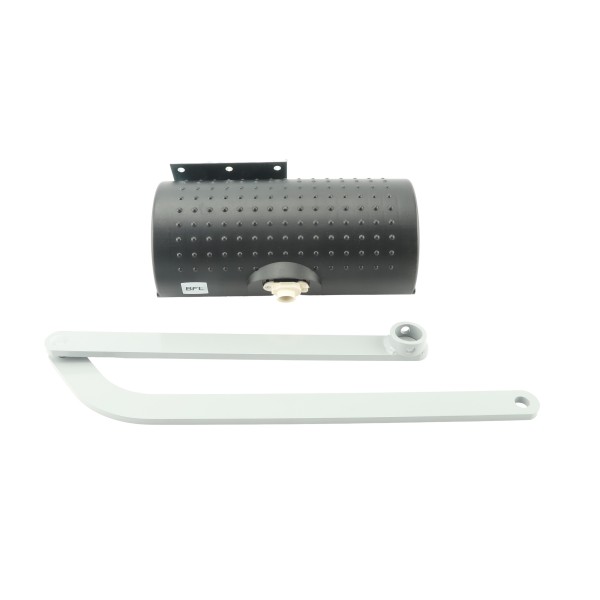

BFT IGEA BT UL Electromechanical Swing Gate Opener - P935070-00004
Details
BFT IGEA BT UL Electromechanical Swing Gate Opener - P935070-00004
The IGEA BT from BFT is a single swing gate operator capable of moving gates with a leaf length of up to 10' and weight of up to 550 lbs. This gate operator was designed for use in residential applications. This gate opener has incredible versatility due to the levers that permit installation on large-sized pillars, opening up to 125 Degrees.
The IGEA swing gate operator is powered at 24V, and has been specially designed for simpler and faster installation in compliance with the latest safety standards. Thanks to the obstruction sensing device, the operator reverses motion and prevents damage to people and vehicles in the event of detecting contact.
Simpler Installation
BFT features a unique system of coded magnetic limit switches, making it possible to reduce the complexity of wiring the low-voltage motors. In this system just a single wire is carried to the control panel instead of the three or five wires that are normally required, thereby increasing both the simplicity and speed of installation. Another benefit of this BFT operator is that the system is able to automatically distinguish between the open limit switch and the closed one, preventing wasted time and wiring errors.
Features:
- Designed For Residential and Light Commercial Applications
- Manual Release For Extra Safety
- Easy To Install
- Handles Intensive Frequent Use
- Customizable For Specific Applications
Specifications:
- Motor Voltage: 24V
- Maximum Angle: 125 Degrees
- Maximum Width of Door/Gate: 8'
- Maximum Weight: 550 lbs
- Cycle Time: 15 seconds
- Operating Temperature: 5° - 140° F
SKU | P935070-00004 |
---|---|
Alternate Part Number | 2611745 |
Actuator Voltage | 24 DC |
Input Voltage | 220/230/240 AC (60 Hz, 1 Phase), 230 AC (50 Hz, 1 Phase) |
Max Gate Length | 10 ft |
Max Gate Weight | 550 lbs |
