BFT Igea Dual Swing Gate Opener BT UL Kit - KIGEAUL-D-SE

Details

BFT Igea Dual Swing Gate Opener BT UL Kit - KIGEAUL-D-SE

The BFT IGEA Dual Swing Gate Opener BT UL Kit (KIGEAUL-D-SE) is engineered for swing gates installed on columns or wide posts where traditional linear actuators cannot align properly. Featuring two IGEA BT UL articulated arm operators, this system allows for flexible hinge geometry while supporting gates up to 550 lbs and 6.5 feet per leaf. The included Thalia UL control board is mounted inside a weather-resistant 10"x12" fiberglass enclosure, offering compact, secure housing for low-voltage automation. With safety photocells, rolling code remotes, and direct burial wire included, this kit delivers a complete UL-listed automation solution that is installation-ready out of the box.

Features

• Designed for swing gates with wide columns or offset hinges
• Articulated arms simplify installation in non-standard layouts
• Thalia UL board provides smooth 24V electromechanical operation
• UL-compliant system enhances safety and reliability
• Compact enclosure allows discreet installation in tight areas

Specifications

• Kit Model: KIGEAUL-D-SE
• Motor Voltage: 24V DC
• Max Gate Weight: 550 lbs per leaf
• Max Gate Length: 6.5 feet per leaf
• Operator Type: Electromechanical with articulated arms
• Enclosure Size: 10" x 12" (Fiberglass, NEMA-rated)
• Control Board: Thalia UL, pre-mounted
• Power Supply: 120V AC to 24V DC (via board transformer)
• Safety: UL325 compliant
• Photocell Range: Approx. 30 feet
• Remote Frequency: 433.92 MHz (rolling code)

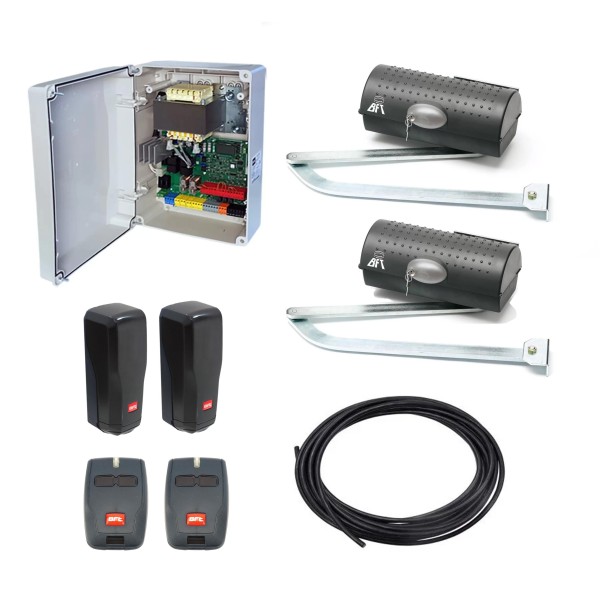

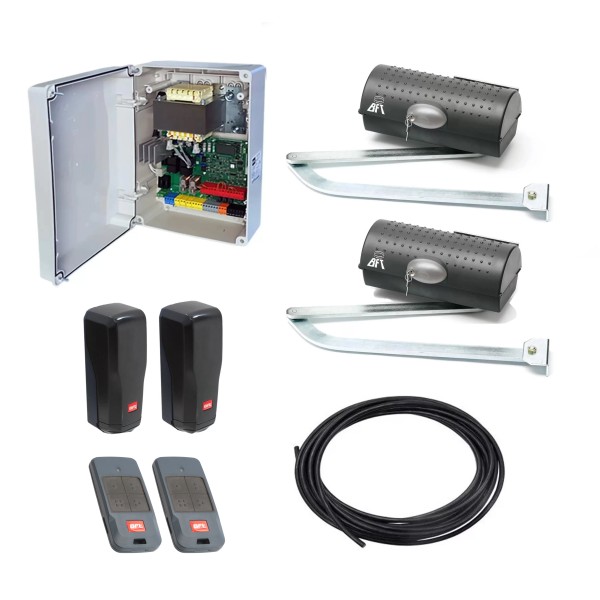

Includes

• 2 × IGEA BT UL Articulated Arm Gate Operators
• 1 × 10"x12" UL-Rated Fiberglass Enclosure
• 1 × Thalia UL Control Board (Pre-Wired)
• 1 × BFT IR Photocell Safety Sensor
• 2 × BFT Mitto 2-Channel Rolling Code Remotes
• 1 × 35' Length of 16/3 Direct Burial Low-Voltage Wire
