BFT Igea Swing Gate Opener BT UL Kit w/ Emergency Backup Batteries - KIGEAUL-S-LE

Details

BFT Igea Swing Gate Opener BT UL Kit w/ Emergency Backup Batteries - KIGEAUL-S-LE

The BFT IGEA Swing Gate Opener BT UL Kit with Emergency Backup Batteries (KIGEAUL-S-LE) is a complete single-leaf gate automation solution equipped for continuous operation, even during power outages. It features one IGEA BT UL articulated arm operator designed to work with wide columns and offset hinges. The included 12"x14" fiberglass enclosure houses the Thalia UL control board along with two 9Ah backup batteries and a built-in 115V outlet for accessory expansion. With its UL-listed safety components, wireless remotes, and photocell sensor, this kit delivers peace of mind, flexibility, and long-lasting performance for residential or light commercial gates.

Features:

• Ideal for single swing gates on large columns or offset posts
• Articulated arm simplifies complex mounting geometries
• Backup battery power ensures operation during outages
• Thalia UL board provides smooth, low-voltage control
• UL-compliant for enhanced safety and reliability

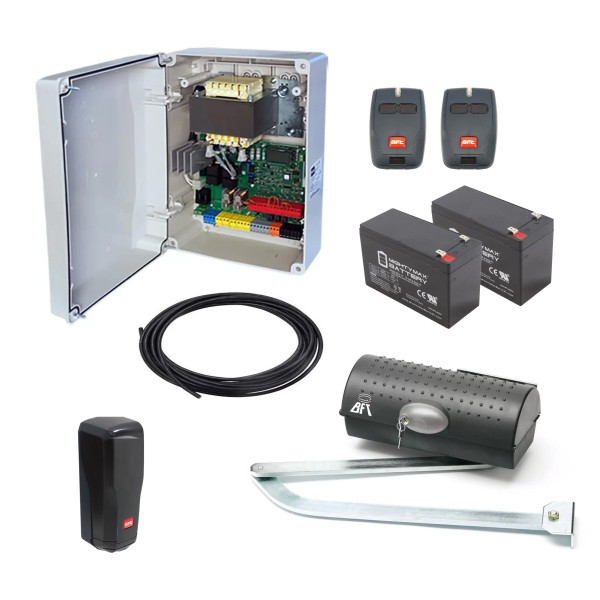

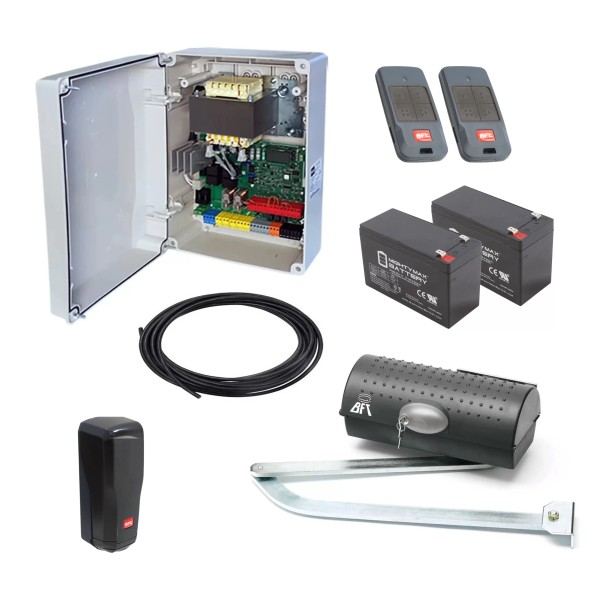

Includes:

• 1 × IGEA BT UL Articulated Arm Gate Operator
• 1 × 12"x14" UL-Rated Fiberglass Enclosure
• 1 × Thalia UL Control Board (Pre-Wired)
• 2 × 9Ah 12V Sealed Lead-Acid Backup Batteries
• 1 × 115V Pre-Wired Outlet for Accessory Use
• 1 × BFT IR Photocell Safety Sensor
• 2 × BFT Mitto 2-Channel Rolling Code Remote Transmitters
• 1 × 10' Length of 16/3 Direct Burial Low-Voltage Wire

Specifications:

• Kit Model: KIGEAUL-S-LE (Backup Battery Version)
• Motor Voltage: 24V DC
• Max Gate Weight: 550 lbs
• Max Gate Length: 6.5 feet
• Operator Type: Electromechanical with Articulated Arm
• Control Board: Thalia UL
• Enclosure Size: 12" x 14" (Fiberglass, NEMA-rated)
• Power Supply: 120V AC input with 24V DC system output
• Backup Power: 2 × 12V 9Ah Batteries
• Photocell Range: Approx. 30 feet
• Remote Frequency: 433.92 MHz
• Standards: UL325 Compliant
