BFT Igea Swing Gate Opener BT UL Kit - KIGEAUL-S-LE

The BFT IGEA Swing Gate Opener BT UL Kit (KIGEAUL-S-LE) is a single-leaf automation system designed for gates installed on wide posts, masonry columns, or non-standard hinge alignments. It includes one IGEA BT UL operator with an articulated arm that allows for a wide range of mounting geometries without sacrificing performance. The Thalia UL control board comes pre-installed in a 10"x12" fiberglass enclosure, offering compact and weather-resistant housing for reliable operation. A photocell sensor, two rolling code remotes, and a 10-foot length of low-voltage wiring complete the package, making it ideal for residential use or light commercial single-gate installations.

Features:

• Single-gate solution for offset hinges or wide columns
• Articulated arm enables flexible and easier mounting
• Thalia UL board ensures consistent low-voltage automation
• Compact enclosure fits easily in tight installation areas
• UL-listed components promote safe and compliant operation

Specifications:

• Kit Model: KIGEAUL-S-LE
• Operator Voltage: 24V DC
• Max Gate Weight: 550 lbs
• Max Gate Length: 6.5 feet
• Operator Type: Electromechanical with articulated arm
• Enclosure Size: 10" x 12" (Fiberglass, NEMA-rated)
• Control Board: Thalia UL (pre-installed)
• Power Input: 120V AC converted to 24V DC
• Photocell Range: Approx. 30 feet
• Remote Frequency: 433.92 MHz
• Compliance: UL325 Safety Standards

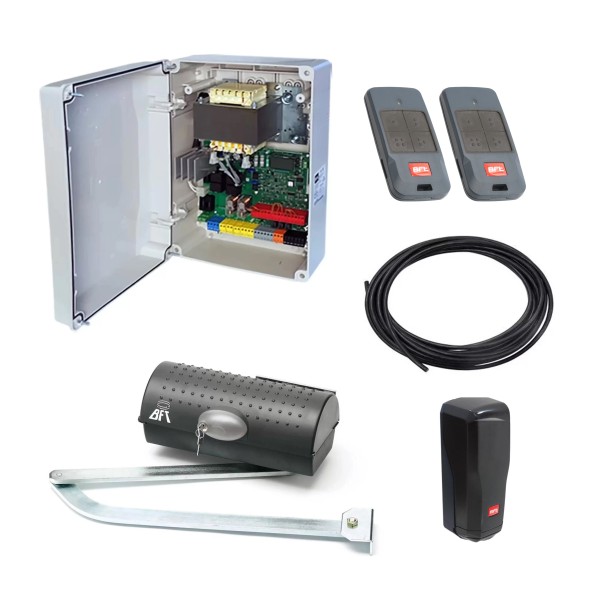

Includes:

• 1 - IGEA BT UL Articulated Arm Gate Operator
• 1 - 10"x12" UL-Rated Fiberglass Enclosure
• 1 - Thalia UL Control Board (Pre-Wired)
• 1 - BFT IR Photocell Safety Sensor
• 2 - BFT Mitto Cool 4-Channel Remote Transmitters
• 1 - 10' Length of 16/3 Direct Burial Low-Voltage Wire
