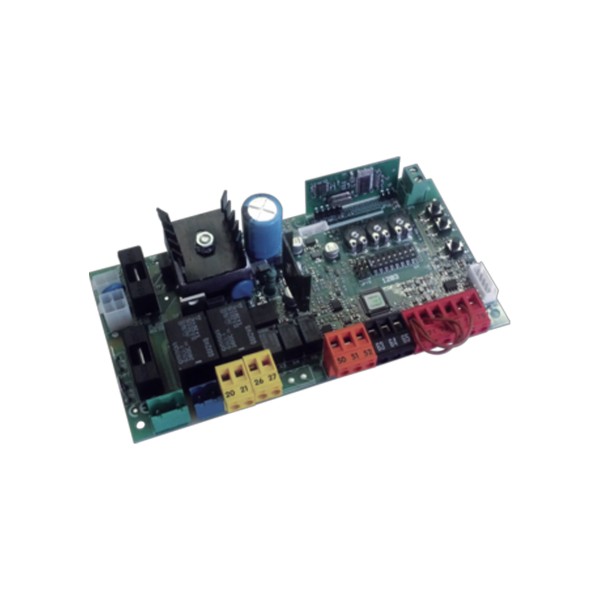

BFT Hamal Control Board 600 230V - I700009 10001

The BFT Hamal 600 is a control panel designed for managing a single 24V operator for sliding gates, with a power output of up to 80W. It operates on a 230V single-phase power supply and includes features such as automatic closing and pedestrian opening via remote control.
Part Number: I700009-10001
$395.24 each
$395.24 each
OR

Details

BFT Hamal Control Board 600 230V - I700009 10001

This control panel is equipped with removable terminal blocks featuring standard color-coding, facilitating straightforward installation and maintenance. Programming is accomplished through dip-switches and potentiometers, allowing for precise configuration of gate operations. The Hamal 600 incorporates an integrated dual-channel receiver and the D-Track anti-crushing system, enhancing safety by adjusting the force applied during gate movement. Additionally, it supports slowdown during opening and closing phases, contributing to smooth and controlled gate transitions.

Specifications

  • Model: Hamal 600
  • Part Number: I700009 10001
  • Power Supply: 230V single-phase
  • Operator Power Output: Up to 80W
  • Control Features: Dip-switch and potentiometer programming
  • Safety Features: D-Track anti-crushing system
  • Integrated Receiver: Dual-channel
  • Functions: Automatic closing, pedestrian opening via remote control
  • Terminal Blocks: Removable with standard color-coding
  • Slowdown Phases: Supported during opening and closing
Prefer to Call? (888) 378-1028

Questions about part number I700009-10001?

Required Fields *

Name *

Email *

Phone

My Questions *

SKU I700009-10001
Alternate Part Number 2610702
Input Voltage 220/230/240 AC (60 Hz, 1 Phase), 230 AC (50 Hz, 1 Phase)
Product Type Control Board
Bollard Model No
Slide Gate Model No
