Product Description

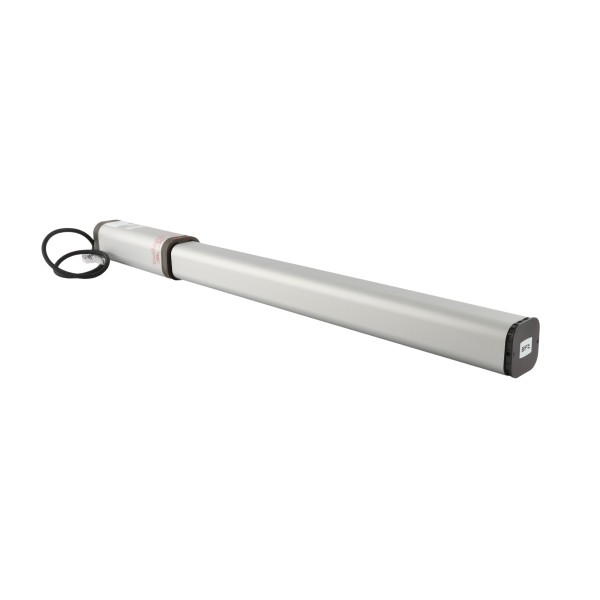

The LUX 2B UL/CSA hydraulic gate operator is UL 325 compliant and handles swing gates up to 660 pounds and 10 feet long. Crushing prevention is guaranteed by two adjustable bypass valves.
Specifications
- Control Panel: RIGEL 6 (required, not included)
- Reversible/Irreversible Operator: Irreversible
- Power Supply: 120 V, 60 Hz single-phase
- Absorbed Power: 0.33 hp (250 W)
- Thermal Protection: Integrated
- Rod Working Stroke: 10.63" (270 mm)
- Rod Speed: 0.55 ips (14 mm/s)
- Opening and Closing Time: 17s
- Impact Reaction: Hydraulic clutch
- Lock: Hydraulic opening/closing
- Manual Release: Release key
- Operating Cycle: Intensive use
- Environmental Conditions: From 14°F (-10°C) to 140°F (+60°C)
- Degree of Protection: IP57
- Operator Weight: 19 lbs
Additional Information
| SKU | P935011 00013 |
|---|---|
| Condition | New |
| Operator Type | Single |
| Max Gate Length | 10 ft |
| Max Gate Weight | 660 lbs |
| Opening or Closing Time | 17 seconds |
| Voltage | 120 V |
