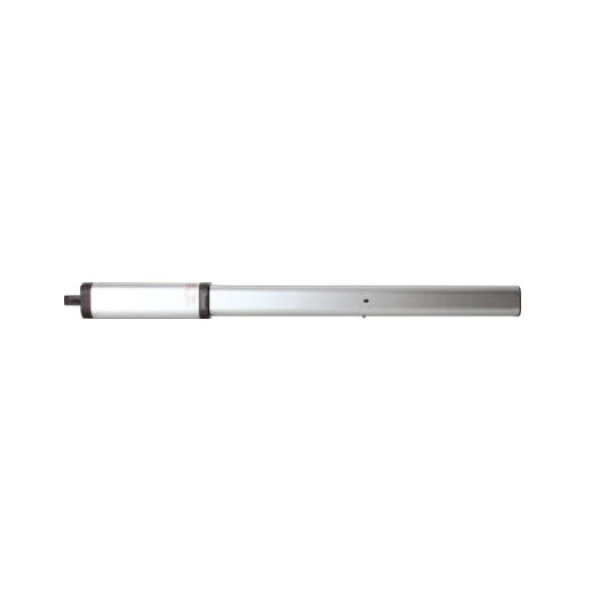

BFT LUX G Hydraulic Operator Gate Arm - P935013-00001
Details
BFT LUX G Hydraulic Operator Gate Arm - P935013-00001
This operator is engineered for intensive use, making it suitable for both residential and commercial applications. Its hydraulic system ensures smooth and reliable operation, while the adjustable front and rear brackets facilitate flexible installation. The LUX G's design allows for precise control of gate movements, contributing to enhanced security and convenience. Additionally, the operator's robust construction ensures longevity and consistent performance under frequent usage.
Specifications
- Model: LUX G
- Part Number: P935013-00001
- Power Supply: 230V
- Maximum Gate Length: 5 meters
- Maximum Gate Weight: 800 kg
- Useful Travel: 390 mm
- Maneuver Time: 48 seconds
- Maximum Opening Angle: 130 Degrees
| SKU | P935013-00001 |
|---|---|
| Alternate Part Number | 2611699 |
| Operator Type | Actuator Arm |
| Actuator Voltage | 220/230/240 AC (60 Hz, 1 Phase), 230 AC (50 Hz, 1 Phase) |
| Input Voltage | 220/230/240 AC (60 Hz, 1 Phase) |
| Max Gate Weight | 660 lbs |
| Max Gate Length | 10 ft |
| Swing Gate Model | Lux |
