BFT LUX R 2B 2Sn 120V - P935046 00006

Details

BFT LUX R 2B 2Sn 120V - P935046 00006

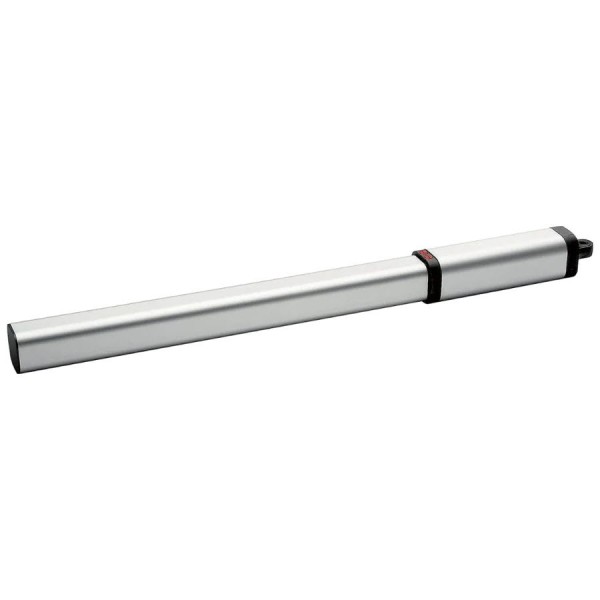

This hydraulic operator is suitable for very intensive use, making it ideal for residential and light commercial applications. It includes a hydraulic clutch for impact reaction and a hydraulic locking system for both opening and closing. The manual release is facilitated by a release key, allowing for manual operation during power outages. The operator is compatible with the RIGEL 4 UL/CSA or RIGEL 5 control panels and is designed to withstand environmental conditions ranging from 14 Degrees F (-10 Degrees C) to 140 Degrees F (60 Degrees C).

Specifications

• Model: LUX R 2B 2SN 120V
• Part Number: P935046 00006
• Power Supply: 120V, 60 Hz single-phase
• Absorbed Power: 0.33 hp (250 W)
• Rod Working Stroke: 9.84 inches (250 mm)
• Rod Speed: 0.55 inches per second (14 mm/s)
• Opening and Closing Time: 17 seconds
• Slowdown: On rod extension
• Impact Reaction: Hydraulic clutch
• Lock: Hydraulic opening/closing
• Manual Release: Release key
• Operating Cycle: Very intensive use
• Environmental Conditions: 14 Degrees F (-10 Degrees C) to 140 Degrees F (60 Degrees C)
• Degree of Protection: IP57
• Operator Weight: 19 lbs (8.7 kg)
• Control Panel Compatibility: RIGEL 4 UL/CSA or RIGEL 5
