BFT Phobos BT A40 Single Swing Gate Opener Complete Kit - PBTA40-SINGLE

The Single Swing Gate Operator Kit contains the BFT Phobos BT A40 24V Single Swing Gate Operator, Thalia Control Board, BFT B-EBA P111494 WIFI Gateway Expansion Card, two MITTO 4-Channel Rainbow Transmitters, and a set of Self-Aligning Through Beam Photo Eyes. This complete kit is for swing gates up to 17 ft long weighing up to 550 lbs.
Part Number: PBTA40-SINGLE

$730.28 each
OR

Details

BFT Phobos BT A40 Single Swing Gate Opener Complete Kit - PBTA40-SINGLE

The BFT Phobos BT A40 Swing Gate Operator Kit includes a Phobos BT A40 Operator Arm, Thalia Control Board, BFT B-EBA P111494 WIFI Gateway Expansion Card, two 4-Channel Transmitters, and a set of Self-Aligning Through Beam Photo Eyes. This is a complete kit including everything you need to get your swing gate opener up and running. Designed for single swing gates up to 17 ft long and weighing up to 550 lbs, the A40 Single Swing Gate Operator Kit has an innovative D-track system that ensures maximum safety for people and property.


Features:

• Designed For Swing Gates
• Standard 20 Second Open/Close Time
• For Residential Or Commercial Applications
• D-Track System Serves Enhanced Functionality
• High Quality Safety Devices By BFT Included
• Photocell Has A Reliable 100 ft Sensing Range
• Transmitter Can Be Added To A Key Ring Or Car Visor
• Single Operator For Gates Up To 550 lbs And 17 ft Long
• Rolling Code Technology Prevents Transmitter Cloning
• Kit Contains All Components For Functioning Gate System
• B-EBA WIFI Gateway Allows Users To Remotely Control & Montior Gate Status

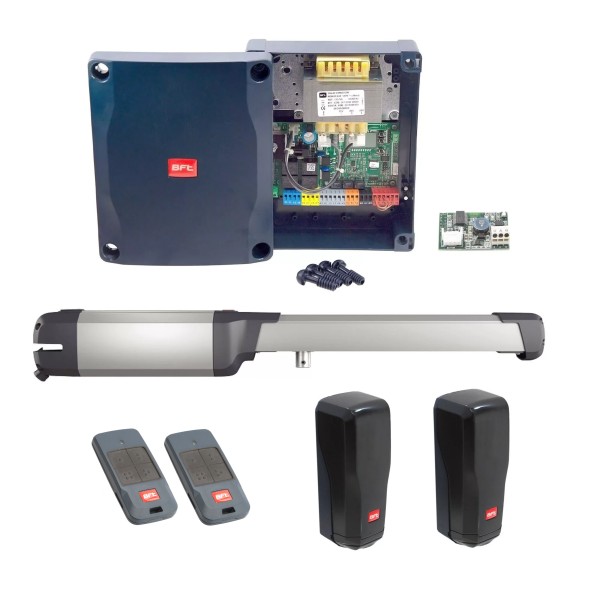

Kit Includes:

• (1) Single Swing Gate Operator
• (1) Thalia Control Board
• (2) 4-Channel Rainbow Transmitters
• (1) Set Of Self-Aligning Through Beam Photo Eyes
• (1) BFT B-EBA P111494 WIFI Gateway Expansion Card

Specifications

• Release: Yes
• Slowdown: Yes
• Max Length: 17 ft.
• Power supply: 24 V
• Power Input: 50 W
• Max. Angle: 124°
• Cycle Time: 20 Sec.
• Max Weight: 550 lbs
• Locking: Mechanical
• Control Panel: Thalia
• Protection Rating: IPX4
• Impact Reaction: D-Track
• Frequency of Use: Intensive
• Type of Limit Switch: Magnetic
• Reversible/Irreversible Operator: Irreversible
• Environmental Conditions: -4°F - 131°F

Operator Brochure

The Phobos BT A40 24V Single Swing Gate Operator by BFT is an electromechanical powered operator for single swing gates. It features a new innovative D-Track system to ensure maximum safety.


Control Board Manual

The Thalia Control Board features essential functions including timer to close, step-by-step movement, quick remote programming, and more for residential or commercial applications.


Transmitter Brochure

The 12V Rainbow 4-Channel Transmitter is specially designed with an encrypted signal and rolling code technology that helps to prevent unwarranted copying of the remote signal.


Photocell Manual

The DESME A15 is a self-aligning photocell set for use in external applications. When installed, this set has a range up to 100 ft (30 m) with a 24v AC/Dc power supply.


WIFI Gateway Manual

The B-EBA Wi-Fi Gateway is an expansion card that allows the device it is installed with to connect to the web, via the home Wi-Fi network and then remotely control operation and monitoring of the gate.



Manual

Specification Sheet

SKU PBTA40-SINGLE
Swing Gate Model Phobos
Operator Type Single
Kit Includes Control Board, Photocell, Transmitter
Max Gate Length 17 ft
Max Gate Weight 550 lbs
Opening or Closing Time 20 seconds
Voltage 24 V
