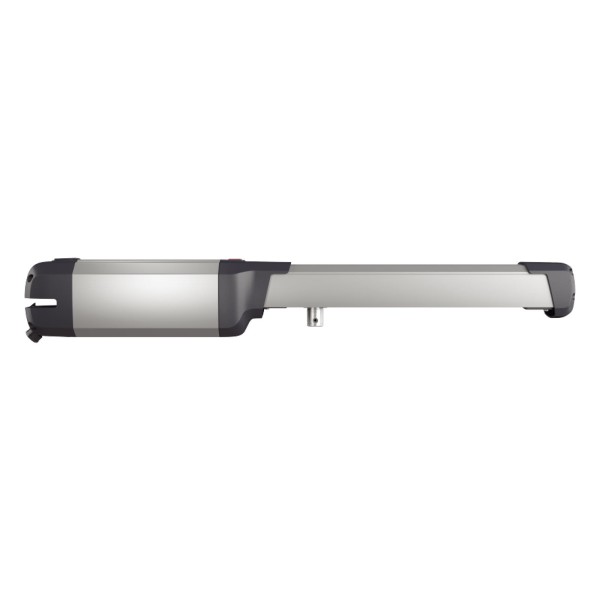

BFT Phobos BT B25 24V Single Swing Gate Opener - P935129 00002
Details
BFT Phobos BT B25 24V Single Swing Gate Opener - P935129 00002
The Phobos BT B25 24V Single Swing Gate Operator by BFT is an electromechanical powered operator for single swing gates up to 10 ft long and weighing up to 550 lbs. Featuring a new innovative system which features the D-Track system to ensure maximum safety for people and property, as well as facilitating certification of the system. With even more innovation than ever, BFT has made an all new improvement to the Phobos swing gate operators, moving the limit switches to the top of the motor, making your swing gate opener installation easier than ever before.
Specifications
- Control Panel: Thalia P (Not Included)
- Reversible/Irreversible Operator: Irreversible
- Max Weight: 550 lbs
- Max Length: 10 ft.
- Power supply: 24 V
- Power Input: 50 W
- Max. Angle: 116°
- Cycle Time: 16 Sec.
- Environmental Conditions: -4° F - 131° F
- Type of Limit Switch: Magnetic
- Slowdown: Yes
- Impact Reaction: D-Track
- Locking: Mechanical
- Release: Yes
- Frequency of Use: Intensive
- Protection Rating: IPX4
| SKU | P935129-00002 |
|---|---|
| Actuator Voltage | 24 DC |
Input Voltage
Need to know the difference between voltages? Check out our guide!
Learn More
|
220/230/240 AC (60 Hz, 1 Phase), 230 AC (50 Hz, 1 Phase) |
| Swing Gate Model | Phobos |
| Operator Type | Actuator Arm |
| Max Gate Length | 8 ft |
| Max Gate Weight | 550 lbs |
| Opening or Closing Time | 8 seconds |
