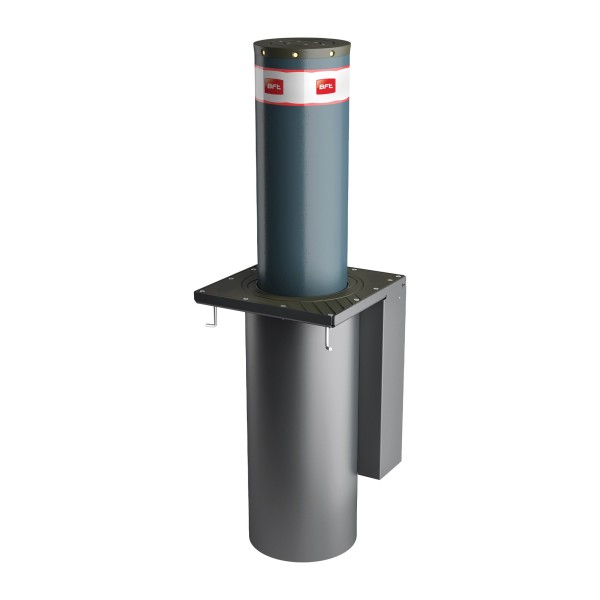

BFT Pillar B Series 275/800.10C LI SD Automatic Hydraulic-Powered Bollard (Painted Steel)
The BFT Pillar B Hydraulic Bollard was designed specifically for very intensive use in highly sensitive areas such as ministries, barracks, airports or churches. It features the special SD (Security Device) that will keep the shaft raised in case of power loss and a powerful hydraulic operator that makes this model capable of rising in only 6.5 seconds, and with an IP67 protection rating, it can endure severe weather conditions, as well as operating ambient temperatures of -40°F to 140°F (when used with integrated heating element). Additionally, this hydraulic bollard comes with amber-colored LED lights with red reflective stickers on the top cover and 33-foot-long connection cables, making it one of the most secure, dependable, and easy-to-maintain hydraulic bollards on the market today.
This Bollard Meets The Following Standards:
- 2004/108/CEE; 93/68/CEE (EN55104-1; EN55014-2) - Electromagnetic Compatibility
- 2006/95/CEE; 93/68/CEE (EN60335-1(2002)) - Low Voltage
- 2006/42/CEE ( EN60204-1 ) - Machinery Directive
- 99/5/CEE ( ETSI EN 301 489-3 (2002) + ETSI EN 301 498-1 (2005); ETSI EN 300 220-2 (2006)) - Radio set (tested with the electronic control unit PERSEO CBD or PERSEO CBE)
Technical Features:
- Shaft Diameter: 10.75"
- Shaft Thickness: 0.24"
- Shaft Height: 31.5"
- Foundation Type: Concrete
- Foundation Excavation: ~40" x 40" x 55"
- Impact Resistance: 200,000 Joules
- Break-In Resistance: 250,000 Joules
- Operation Type: Hydraulic
- Manual Operation: Release Key
- Raising Time: 6.5 Seconds
- Operating Temperature: -40°F to 140°F
- IP Protection Rating: IP67
- Frequency Of Use: Intensive Use (Up to 3000 Operations Per Day)
Electrical Features:
- Power: 230VAC, 50-60 Hz
- Control Unit: Perseo CBD 230.P SD
- Limit Switch Type: Reed Magnetic Sensor
- IP Protection Rating: IP54
- Working Temperature: -40°F to 140°F
- Operating Humidity: 95% Max, Non-Condensing
- Use: Maximum 4 For Each Control Unit (Parallel Control Wiring Possible For Driving Many Bollard Groups)
- Power Absorbed: 0.50 kW Per Bollard
- Sensors: Open Passage, Close Passage
- Local/Remote Control: Digital Inputs; Radio Remote Control
Additional Information
| SKU | P970106 00003 |
|---|---|
| Bollard Height | 800 mm (31.50 in.) |
| Bollard Diameter | 275 mm (10.83 in.) |
| Functionality | Standard |
| Automation Type | Automatic |
| Material | Painted Steel |
| Bollard Model | Pillar |
| Rise Time | 6.5 sec. |
| Voltage | 230 V |
