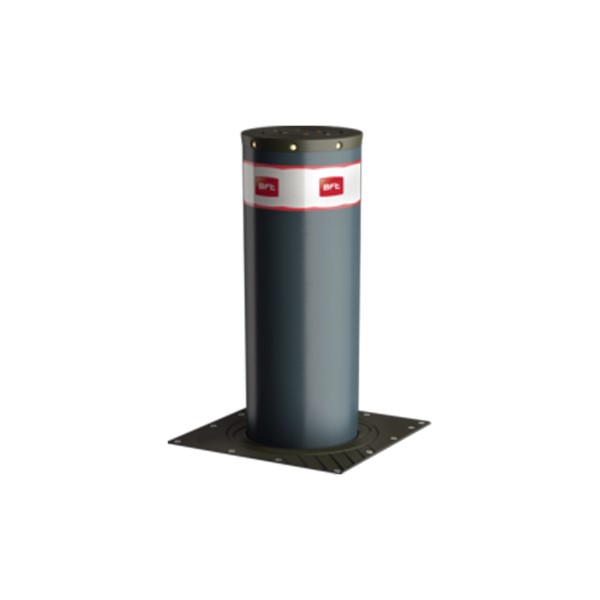

BFT PILLAR B 2758006C L 230 V Hydraulic Bollard
Details
BFT PILLAR B 2758006C L 230 V Hydraulic Bollard
The BFT PILLAR B 2758006C L 230 V Hydraulic Bollard operates on 230 V and features a shaft with a height of 800 mm and a diameter of 273 mm. In the event of a power cut, the bollard lowers automatically, ensuring uninterrupted functionality. Constructed from painted stainless steel with a RAL 7015 finish, this bollard combines durability with a contemporary appearance. A foundation box is included for straightforward installation.
Specifications
- Power Supply: 230 V
- Impact Resistance: 20000 J
- Rise Time: 6.1 S
- Break-In Proof: 250000 J
- Control Unit: PERSEO CBE
- Rod Diameter: 10 Inch
- Manual Cycle: Reversible In The Absence Of Voltage
- Lowering Time: 5 S
- Frequency Of Use: 3000 Op/Gg
- Protection Rating: IP67
- Rod Height: 31 Inch
- Environmental Conditions: -40 - 140 F
- Rod Thickness: 0 Inch
- Interconnectivity: No
- Type Of Limit Switch: REED Magnetic Sensor
- Rod Treatment: RAL7015 Cataphoresis Coating And Paint
| SKU | P970093-00001 |
|---|---|
| Alternate Part Number | 2601346 |
| Bollard Height | 800 mm (31.50 in.) |
| Bollard Diameter | 275 mm (10.83 in.) |
| Operator Type | No |
| Crash Rating | Not Crash Rated |
| Automation Type | Automatic |
| Bollard Model | Pillar |
| Rise Time | 6.5 sec. |
| Input Voltage | 220/230/240 AC (60 Hz, 1 Phase), 230 AC (50 Hz, 1 Phase) |
