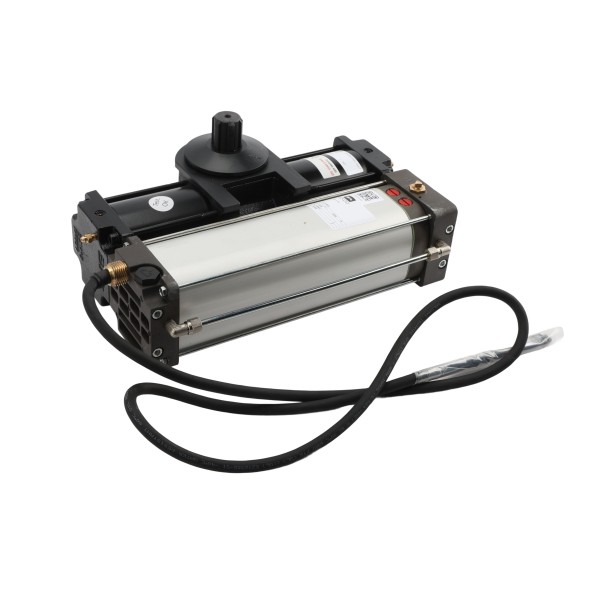

BFT SUB R DX Underground Automatic Swing Gate Opener (Right-Hand Orientation) 120V - P930012 00007

The BFT SUB R UL/CSA DX hydraulic swing gate operator is capable of moving swing gates up to 1750 pounds and 11 ft 6 in long. The DX line of SUB swing gate openers has the motor is on the right hand side of the driveway from inside the property. It is UL- and CSA-listed.
Part Number: P930012-00007
$1,181.64 each
$1,181.64 each
OR


Details

BFT SUB R DX Underground Automatic Swing Gate Opener (Right-Hand Orientation) 120V - P930012 00007

The BFT SUB R UL/CSA DX hydraulic swing gate operator is capable of moving swing gates up to 1750 pounds and 11 ft 6 in long. The DX line of SUB swing gate openers has the motor is on the right hand side of the driveway from inside the property.

Simple Maintenance & Installation

Maintenance is carried out without any need to raise or disassemble the gate. The SUB series of gate openers features a special foundation case that makes it possible to remove the operator without taking off the gate leaf.

  • Control Panel: RIGEL 6 (required, not included)
  • Reversible/Irreversible Operator: Irreversible
  • Power Supply: 120 V, 60 Hz single-phase
  • Absorbed Power: 0.33 hp (250 W)
  • Thermal Protection: Integrated
  • Opening Angle: 125°
  • Opening or Closing Time: 14s
  • Slowdown: Opening / Closing
  • Impact Reaction: Hydraulic clutch
  • Lock: Hydraulic opening/closing
  • Manual Release: Release key
  • Operating Cycle: Intensive use
  • Environmental Conditions: From 14°F (-10°C) to 140°F (+60°C)
  • Degree of Protection: IP67
  • Operator Weight: 48 lbs
  • Fuse Value Rigel 5 Board Transformer: 2A T
  • Fuse Value Rigel 5 Board Logic Board: 1A T

BFT Sub Cut Sheet

BFT Sub Manual

Manual

Specification Sheet

SKU P930012-00007
Alternate Part Number 2611675
Input Voltage 110/115/120 AC (60 Hz, 1 Phase)
Swing Gate Model Sub
Operator Type Single
Max Gate Length 11.5 ft
Max Gate Weight 1750 lbs
Opening or Closing Time 14 seconds
