BFT X-Pass B Hydraulic Bollard 275/800C LI 316 - P970094-00302

The BFT XPASS B 275800C LI 316 Hydraulic Bollard, with an 800 mm height and 273 mm diameter, provides K4 anti-terrorism certification and automatic lowering during power outages, finished in AISI 316L stainless steel.

Call for Pricing: (800) 878-7829

Part Number: P970094-00302


Details

BFT X-Pass B Hydraulic Bollard 275/800C LI 316 - P970094-00302

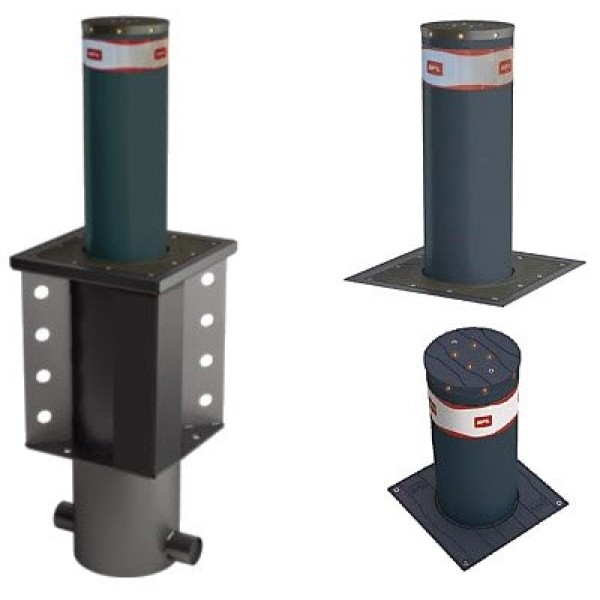

The BFT XPASS B 275800C LI 316 Hydraulic Bollard is a hydraulic anti-terrorism bollard with K4 certification, designed for 230 V operation. It features a shaft height of 800 mm and a diameter of 273 mm, and includes an LED lights cap for enhanced visibility. In the event of a power failure, the shaft lowers automatically to ensure safety. A foundation box is included for installation.

Specifications

  • Control Unit: PERSEO CBE
  • Type Of Limit Switch: REED Magnetic Sensor
  • Frequency Of Use: 2000 Op/Gg
  • Raise Time: 7 S
  • Protection Rating: IP67
  • Impact Resistance: 250000 J (Twin Installation)
  • Rod Height: 31 Inch
  • Lower Time: 4 S
  • Environmental Conditions: -40 - 140 F
  • Rod Thickness: 0 Inch
  • Power Supply: 230 V
  • Break-In Proof: 800000 J (Twin Installation)
  • Interconnectivity: No
  • Rod Diameter: 10 Inch
  • Antiterrorism: Reference Standard: PAS 68:2010 7500/50/N2
  • Rod Treatment: AISI 316L Stainless Steel
  • Manual Cycle: Reversible In The Absence Of Voltage
Prefer to Call? (888) 378-1028

Questions about part number P970094-00302 ?

Required Fields *

Name *

Email *

Phone

My Questions *

SKU P970094-00302
Bollard Height 800 mm (31.50 in.)
Bollard Diameter 275 mm (10.83 in.)
Operator Type No
Crash Rating Tooltip
Crash Rating is determined by the vehicle speed and weight being halted. Learn More About Crash Ratings.
Not Crash Rated
Automation Type Automatic
Bollard Model XPASS
Rise Time 7 sec.
Input Voltage 220/230/240 AC (60 Hz, 1 Phase), 230 AC (50 Hz, 1 Phase)
