BFT Icaro Fast Smart AC A2000 - P925265-00002
Details
BFT Icaro Fast Smart AC A2000 - P925265-00002

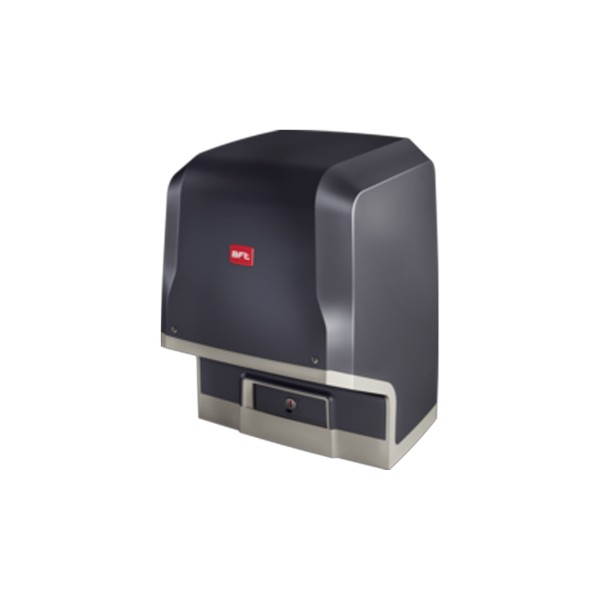

Designed for heavy-duty sliding gates, the BFT Icaro Veloce Smart AC A 2000 combines speed and precision to handle demanding applications. The system features an encoder for accurate positioning and utilizes D-Track technology to adjust torque dynamically, ensuring safe and efficient operation. With an oil bath gearbox and integrated LEO B CBB L02 control unit, this operator is built for long-term, intensive use. Additionally, the operator supports U-Link connectivity, enabling advanced integration with access control systems.
Specifications
- Model: Icaro Veloce Smart AC A 2000
- Part Number: P925256-00002
- Power Supply: 230V
- Maximum Gate Weight: 2000 kg
- Gate Panel Speed: 18 m/min
- Movement Control: Encoder
- Safety Features: D-Track torque management, mechanical safety clutch
- Gearbox: Oil bath
- Control Unit: Integrated LEO B CBB L02
- Connectivity: U-Link compatible
| SKU | P925265-00002 |
|---|---|
| Actuator Voltage | 220/230/240 AC (60 Hz, 1 Phase) |
| Opening Speed | 11.8" per second |
| Max Gate Weight | 4400 lbs |
| Max Gate Length | 75 ft |
| Product Type | Other Hardware |
| Slide Gate Model | ICARO |
| Specification Sheet | Download PDF file |
| Manual | Download PDF file |
