BFT Lux GV Apric mt 3,5 Vel 230V50/60h Base - P935014-00001
Details
BFT Lux GV Apric mt 3,5 Vel 230V50/60h Base - P935014-00001

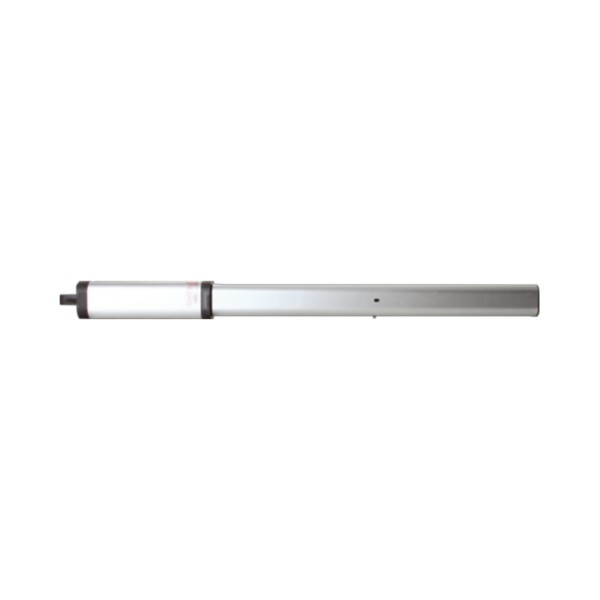

Designed for very intensive use, the LUX GV is ideal for residential, industrial, and multi-residence environments. Its hydraulic clutch ensures smooth and reliable operation, even under heavy usage conditions. The non-locking design requires a physical locking device for security, providing flexibility in various installations. Additionally, the operator's all-aluminum structure with high-resistance anodizing treatment ensures durability and longevity.
Specifications
- Model: LUX GV
- Part Number: P935014-00001
- Power Supply: 230V
- Maximum Gate Length: 3.5 meters
- Maximum Gate Weight: 300 kg
- Useful Travel: 270 mm
- Maneuver Time: 17 seconds
- Maximum Opening Angle: 123 Degrees
- Locking System: Solenoid Lock
| SKU | P935014-00001 |
|---|---|
| Operator Type | Actuator Arm |
| Actuator Voltage | 220/230/240 AC (60 Hz, 1 Phase) |
| Max Gate Weight | 660 lbs |
| Max Gate Length | 10 ft |
| Swing Gate Model | Lux |
| Specification Sheet | Download PDF file |
| Manual | Download PDF file |
Warranty
Browse Our Warranty Info for More Details
Read Now
|
24 Months |
