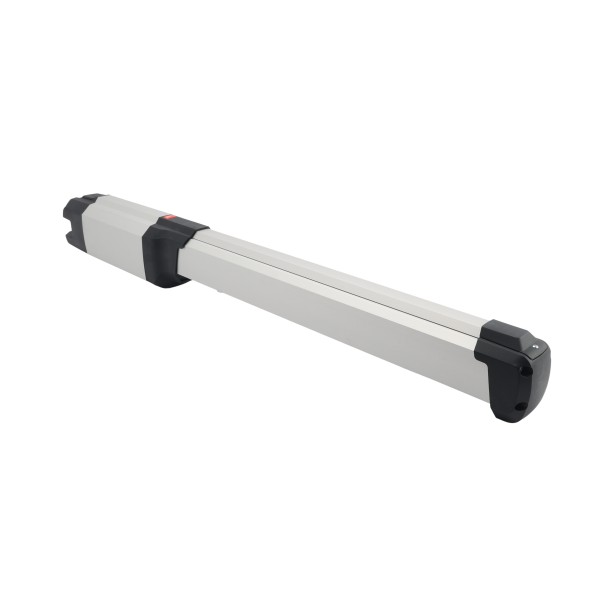

BFT Phobos BT B40 Operator Only - P935130-00002
Details
BFT Phobos BT B40 Operator Only - P935130-00002
Designed for industrial, 1500lb swing gates, the Phobos BT B40 is a heavy-duty solution for your swing gate needs. Featuring exclusive D-Track technology that ensures safety, you can put your mind at ease knowing that your swing gate will open and close smoothly off of this 24V gate opener. This unit comes with the operator only.
Specifications:
- Board power supply: 230 V
- Control unit: THALIA BT A80. ZARA BT A80
- Operator type: electromechanically operated swing gates
- Operator weight: 5.2 kg
- Max. width of door/gate wing: 4 m
- Max. length gate panel without electric lock: 3 m
- Max. weight of door/gate wing: 700 kg
- Motor voltage: 24 V
- Power consumption: 40 W
- Thrust and traction force: 2000 N
- Useful rod stroke: 470 mm
- Maximum angle: 130°
- Movement time (90°, excluding slowdown, with maximum gate size and weight): approx. 16 s
- Type of limit switch: Magnetic
- Slowdown: Yes
- Impact reaction: D-Track
- Locking: Mechanical
- Release: Personal key
- Max. opening cycles per hour: 30
- Environmental conditions: -20 รท 55°C
- Protection rating: IP44
- Interconnectivity: no
| SKU | P935130-00002 |
|---|---|
| Operator Type | Actuator Arm |
| Actuator Voltage | 24 DC |
Input Voltage
Need to know the difference between voltages? Check out our guide!
Learn More
|
24 DC |
| Max Gate Weight | 770 lbs |
| Max Gate Length | 13 ft |
| Swing Gate Model | Phobos |
