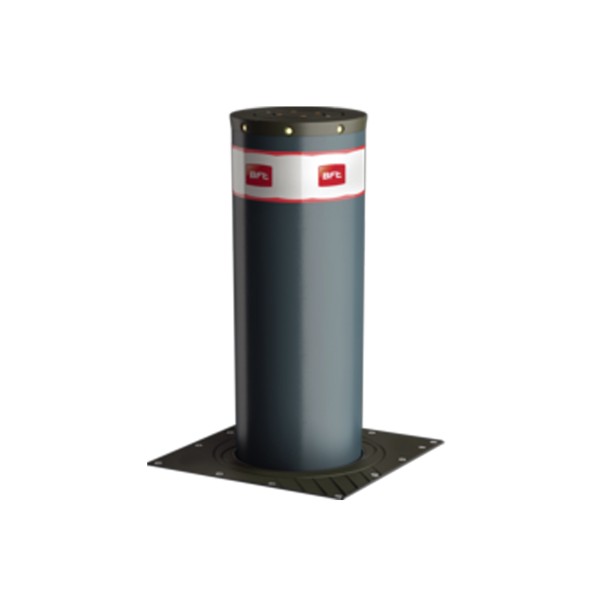

BFT Pillar B Series Hydraulic Bollard 275/800.10c L - P970106-00001

The BFT Pillar B Series Hydraulic Bollard 275/800.10c L provides efficient vehicular access control with a hydraulic mechanism. It features a height of 800 mm and a diameter of 275 mm, suitable for medium to high-security applications.
Part Number: P970106-00001
$5,918.30 each
$5,918.30 each
OR

Details

BFT Pillar B Series Hydraulic Bollard 275/800.10c L - P970106-00001

The BFT Pillar B Series Hydraulic Bollard 275/800.10c L is engineered for effective access management in urban, commercial, and private areas. With a hydraulic lifting system, this bollard ensures seamless and responsive operation. Its 800 mm height and 275 mm diameter create a solid barrier, meeting both functional and safety requirements. The design is suitable for protecting pedestrian zones, parking areas, and restricted access points.

Specifications

  • Bollard Diameter: 275 mm
  • Bollard Height: 800 mm
  • Operation: Hydraulic
  • Application: Medium to high-security areas
  • Power Supply: 230V
  • Protection Rating: IP67
  • Operating Temperature: -20 to 55 Degrees Celsius
Specification Sheet Installation Manual
Prefer to Call? (888) 378-1028

Questions about part number P970106-00001?

Required Fields *

Name *

Email *

Phone

My Questions *

SKU P970106-00001
Operator Type No
Bollard Height 800 mm (31.50 in.)
Crash Rating Tooltip
Crash Rating is determined by the vehicle speed and weight being halted. Learn More About Crash Ratings.
Not Crash Rated
Bollard Diameter 275 mm (10.83 in.)
Automation Type Automatic
Input Voltage 220/230/240 AC (60 Hz, 1 Phase), 230 AC (50 Hz, 1 Phase)
Rise Time 6.5 sec.
Product Type No
Swing Gate Model No
Bollard Model Pillar
Slide Gate Model No
Channels No
Wattage No
Solar Compatible No
Wifi Compatible No
