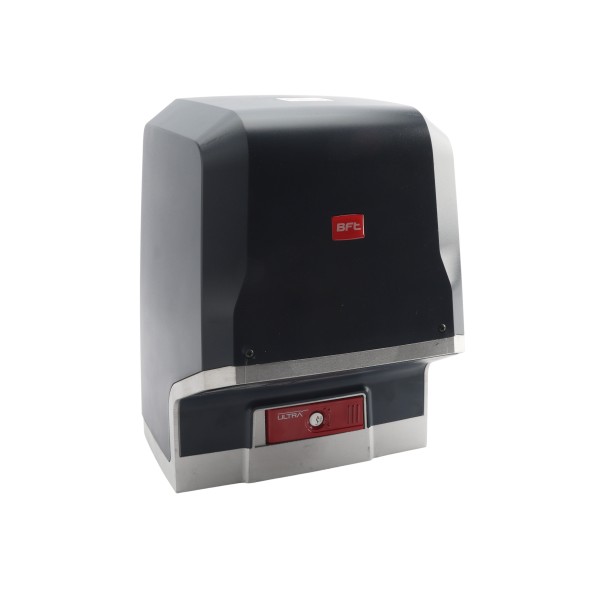

BFT Icaro Ultra AC A2000 -Fast Rack & Pinion Slide Gate Opener, 120V - P925257 00001

The ICARO Ultra AC A2000 Fast 120V is designed for gates up to 4,400 pounds with increased travel speed of 7.9 inches per second. It features encoder-based obstacle detection and U-Link connectivity.
Part Number: P925257-00001
$1,653.34 each
$1,653.34 each
OR

Details

BFT Icaro Ultra AC A2000 -Fast Rack & Pinion Slide Gate Opener, 120V - P925257 00001

The BFT Icaro Ultra AC A2000 Fast 120V offers all the power of the standard A2000 model but with enhanced speed, operating at 7.9 inches per second. It supports gates up to 4,400 pounds and includes encoder-based obstacle detection for improved safety. The integrated control unit comes with a built-in two-channel radio receiver and supports U-Link connectivity for advanced system integration. This model is ideal for sites requiring both high capacity and faster gate movement.

Features

  • Faster operation at 7.9 inches per second
  • Handles gates up to 4,400 pounds
  • Encoder-based obstacle detection
  • Two-channel rolling code radio receiver
  • U-Link system compatibility

Specifications

  • Control Panel: LEO-MA UL
  • Power Supply: 120V
  • Power Input: 750 W
  • Pinion Pitch: 4 mm
  • Leaf Speed: 7.9 inches/second
  • Protection Rating: IP24
  • Operating Temperature: 5 Degrees F to 140 Degrees F

BFT Slide Gate Model Comparison Chart:

  Ares Series Deimos Series Icaro Series Rack & Pinion Series
Gate Capacity 500 kg - 1,650 kg (1,100 - 3,300 lbs) 400 kg - 1,100 lbs 1,000 kg - 2,200 kg (2,200 - 4,400 lbs) Up to 7,000 lbs
Motor Voltage 24V, 120V, 230V 24V, 120V, 230V 120V, 230V 230V (three-phase)
Speed 5.9 - 39 ft/min 7.9 - 12 m/min 7.9 - 22 m/min 34.5 ft/min
Duty Cycle Intensive use Semi-intensive to intensive use Very intensive use Very intensive use
Special Features D-Track torque management, programmable slowdown, mechanical locking D-Track torque management, obstruction sensing, LCD control board D-Track torque management, mechanical clutch, oil bath gearbox, U-Link connectivity Hydrodynamic gear system, electromechanical limit switches, electric brake
Prefer to Call? (888) 378-1028

Questions about part number P925257-00001?

Required Fields *

Name *

Email *

Phone

My Questions *

SKU P925257-00001
Alternate Part Number 2611636
Slide Gate Model ICARO
Input Voltage 110/115/120 AC (60 Hz, 1 Phase)
Max Gate Weight 2200 lbs
Max Gate Length 75 ft
Opening Speed 5.9" per second
Specification Sheet Download PDF file
Manual Download PDF file
