BFT Kustos BT L Dual Swing Gate Operator Kit, Battery Back-Up (Large Enclosure) - KLEBR93531705

BFT Kustos BT L Dual Swing Gate Operator Kit, Battery Back-Up (Large Enclosure) - KLEBR93531705
$2,025.80
The BFT Kustos BT L Dual Swing Gate Operator Kit - KLEBR93531705 features 2 incredibly durable single swing gate operators for gates up to 16 ft and 550 lbs.
OR

Call (800) 878-7829

Details

The BFT Kustos BT L Dual Swing Gate Operator Kit - KLEBR93531705 features 2 incredibly durable single swing gate operators for gates up to 16 ft and 550 lbs. The system features a completely covered screw drive with magnetic stops in the same enclosed housing, ensuring maximum protection against external agents (water, dust, dirt, etc.), as well as protection from injury with its total prevention of any type of access to the moving parts of the system. Additionally, this kit provides a built-in battery back-up, a 15V outlet for connection of accessories and a larger 12" x 14" hinged fiberglass enclosure. This kit is intended for dual swing gate operation, for single gate applications, use the BFT KLEBR93531704 Kustos Single Gate Operation Kit

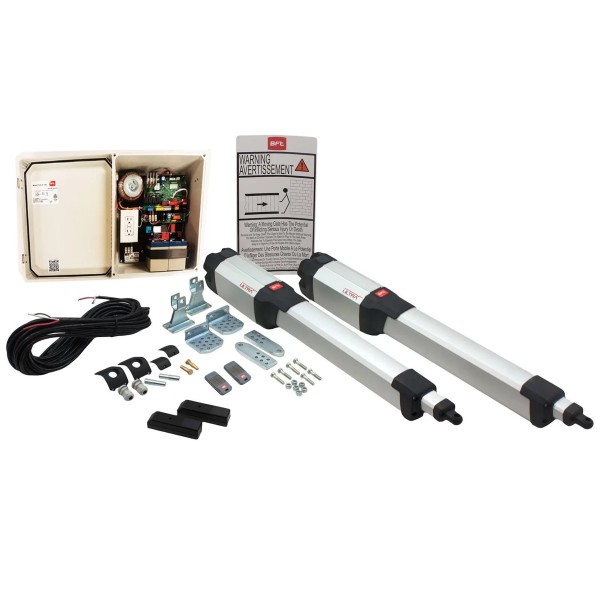

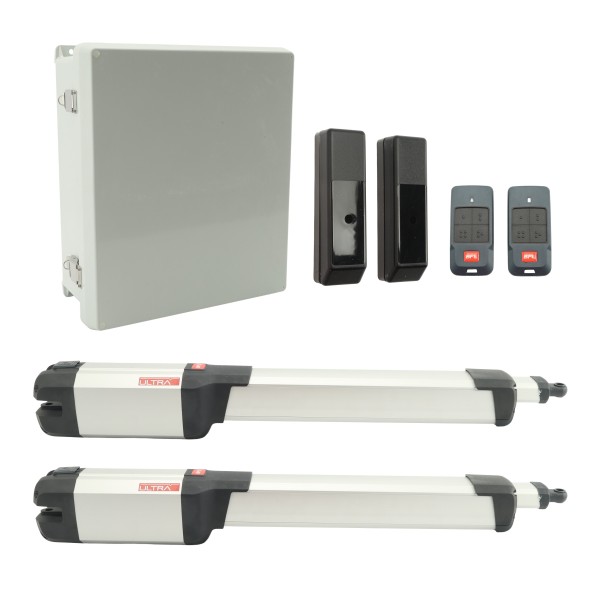

BFT Kustos BT L KLEBR93531705 Dual Kit Includes:

  • (2) BFT Kustos Ultra BT UL Swing Gate Operators
  • UL Thalia Control Board
  • Standard 10" x 12" Hinged Fiberglass Enclosure
  • (2) Mitto Transmitters
  • FL130B Photocells
  • 35' Install Cable
  • Battery Back-up With (2) 12V, 9 AH Batteries
  • 15V Outlet For Accessory Connections

Features:

  • Thalia Control Board
  • Board Power Supply: 115V
  • Operator Power Supply: 24V
  • Power Input: 40W
  • Useful Rod Stroke: 14"
  • Maximum Opening Angle: 126°
  • Cycle Time: 17 Sec.
  • Limit Switch Type: Magnetic
  • Locking Mechanism: Mechanical
  • Environmental Conditions: -4°F to 131°F
  • Protection Rating: IP44
  • Built-In Battery Back-Up
  • UL 2016 Compliant
  • UL Alarm and Reset

Additional Information

SKU KLEBR93531705
Condition New
Operator Type Dual
Max Gate Length 16 ft
Max Gate Weight 550 lbs
Opening or Closing Time 17 seconds
Voltage 115 V (24V)
Photocells FL130B
