BFT Kustos BT L Single Swing Gate Opener Kit, Battery Back-Up (Large Enclosure) - KLEBR93531704
Details
BFT Kustos BT L Single Swing Gate Opener Kit, Battery Back-Up (Large Enclosure) - KLEBR93531704
The BFT Kustos BT L Single Swing Gate Operator Kit - KLEBR93531704 features an incredibly durable single swing gate operator for gates up to 16 ft and 550 lbs. The system features a completely covered screw drive with magnetic stops in the same enclosed housing, ensuring maximum protection against external agents (water, dust, dirt, etc.), as well as protection from injury with its total prevention of any type of access to the moving parts of the system. Additionally, this kit provides a built-in battery back-up, a 15V outlet for connection of accessories and a larger 12" x 14" hinged fiberglass enclosure. This kit is intended for single swing gate operation, for dual applications, use the BFT KLEBR93531705 Kustos Dual Gate Operation Kit

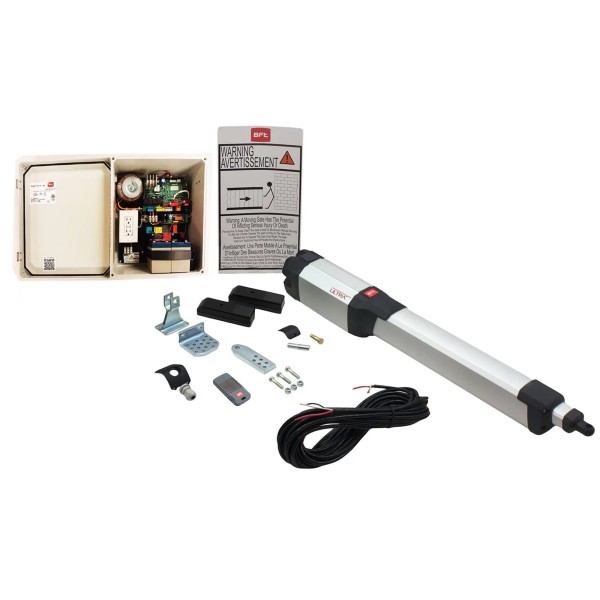

BFT Kustos BT L KLEBR93531704 Single Kit Includes:
- (1) BFT Kustos Ultra BT UL Swing Gate Operator
- UL Thalia Control Board
- Large 12" x 14" Hinged Fiberglass Enclosure
- (2) Mitto Transmitters
- FL130B Photocells
- Installion Cable
- Battery Back-up With (2) 12V, 9 AH Batteries
- 15V Outlet For Accessory Connections
Features:
- Thalia Control Board
- Board Power Supply: 115V
- Operator Power Supply: 24V
- Power Input: 40W
- Useful Rod Stroke: 14"
- Maximum Opening Angle: 126°
- Cycle Time: 17 Sec.
- Limit Switch Type: Magnetic
- Locking Mechanism: Mechanical
- Environmental Conditions: -4°F to 131°F
- Protection Rating: IP44
- Built-In Battery Back-Up
- UL 2016 Compliant
- UL Alarm and Reset
| SKU | KLEBR93531704 |
|---|---|
| Alternate Part Number | 2614851 |
| Actuator Voltage | 24 DC |
| Input Voltage | 110/115/120 AC (60 Hz, 1 Phase) |
| Swing Gate Model | Kustos |
| Operator Type | Single |
| Kit Includes | Battery Backup, Control Board, Photocell, Transmitter |
| Max Gate Length | 16 ft |
| Max Gate Weight | 550 lbs |
| Opening or Closing Time | 17 seconds |
