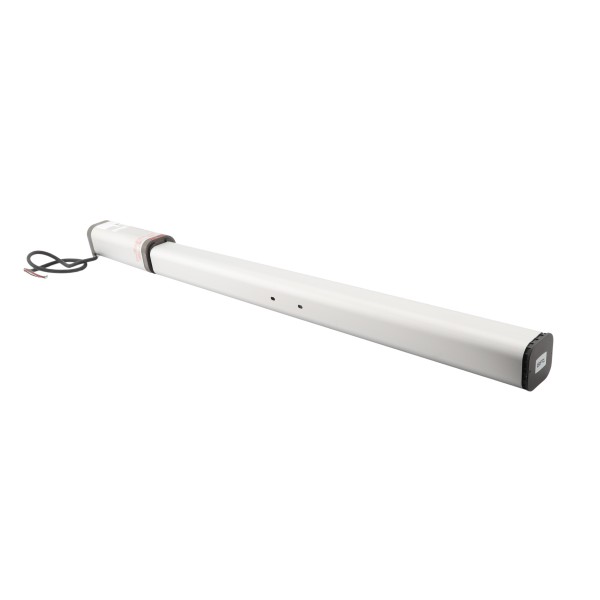

BFT LUX FC 2B Swing Gate Opener 120V - P935039 00002

The LUX FC 2B UL/CSA hydraulic swing gate operator handles swing gates up to 660 pounds and 10 feet long. It is certified for UL and CSA regulations.
Part Number: P935039 00002

$786.41 each
OR

Details

BFT LUX FC 2B Swing Gate Opener 120V - P935039 00002

The LUX FC 2B UL/CSA hydraulic swing gate operator is UL 325 compliant and handles swing gates up to 660 pounds and 10 feet long. Crushing prevention is guaranteed by two adjustable bypass valves.

Specifications

  • Control Panel: RIGEL 6 (required, not included)
  • Reversible/Irreversible Operator: Irreversible
  • Power Supply: 120 V, 60 Hz single-phase
  • Absorbed Power: 0.33 hp (250 W)
  • Thermal Protection: Integrated
  • Rod Working Stroke: 11.02" (280 mm)
  • Rod Speed: 0.55 ips (14 mm/s)
  • Opening and Closing Time: 18s
  • Impact Reaction: Hydraulic clutch
  • Lock: Hydraulic opening/closing
  • Manual Release: Release key
  • Operating Cycle: Intensive use
  • Environmental Conditions: From 14°F (-10°C) to 140°F (+60°C)
  • Degree of Protection: IP57
  • Operator Weight: 19 lbs

BFT Lux Brochure

BFT Lux Cut Sheet

BFT Lux FC Manual

Manual

Specification Sheet

Name BFT LUX FC 2B Swing Gate Opener 120V - P935039 00002
SKU P935039 00002
Alternate Part Number 2611716
Input Voltage 110/115/120 AC (60 Hz, 1 Phase)
Swing Gate Model Lux
Operator Type Single
Max Gate Length 10 ft
Max Gate Weight 660 lbs
Opening or Closing Time 18 seconds
Price $786.41
