BFT Kustos Ultra BT A40 Dual Kit (Includes 2 Openers, FL130B Photocell, 2 MITTOs, and 35' Cable) - R935317 00005
Details
BFT Kustos Ultra BT A40 Dual Kit (Includes 2 Openers, FL130B Photocell, 2 MITTOs, and 35' Cable) - R935317 00005
The BFT Kustos BT A40 Dual Swing Gate Operator Kit - R935317 00005 features an incredibly durable dual swing gate operator for gates up to 16 ft and 550 lbs. The system features a completely covered screw drive with magnetic stops in the same enclosed housing, ensuring maximum protection against external agents (water, dust, dirt, etc.), as well as protection from injury with its total prevention of any type of access to the moving parts of the system. This kit is intended for dual swing gate operation, for single gate applications, use the R935317 00004 BFT Kustos Single Gate Operation Kit.

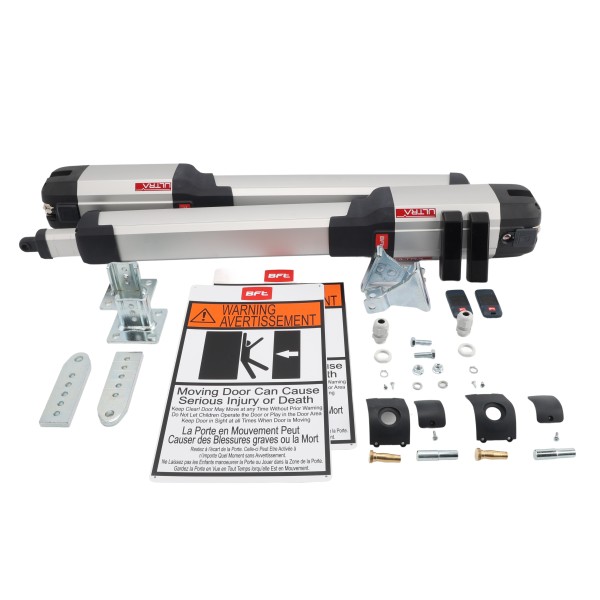

BFT Kustos BT A40 R935317 00005 Dual Kit Includes:
- (2) BFT Kustos Ultra BT A40 Swing Gate Operators
- (2) Mitto Transmitters
- FL130B Photocells
- 35' Install Cable
Features:
- Operator Power Supply: 24V
- Power Input: 40W
- Useful Rod Stroke: 14"
- Maximum Opening Angle: 126°
- Cycle Time: 17 Sec.
- Limit Switch Type: Magnetic
- Locking Mechanism: Mechanical
- Environmental Conditions: -4°F to 131°F
- Protection Rating: IP44
- UL 2016 Compliant
- UL Alarm and Reset
| SKU | R935317-00005 |
|---|---|
| Alternate Part Number | 2611954 |
| Actuator Voltage | 24 DC |
| Input Voltage | 110/115/120 AC (60 Hz, 1 Phase) |
| Swing Gate Model | Kustos |
| Operator Type | Dual |
| Kit Includes | Photocell, Transmitter |
| Max Gate Length | 16 ft |
| Max Gate Weight | 550 lbs |
| Opening or Closing Time | 17 seconds |
